Brand: CommScope | SKU: 372-COMOS2-LTDHD-24

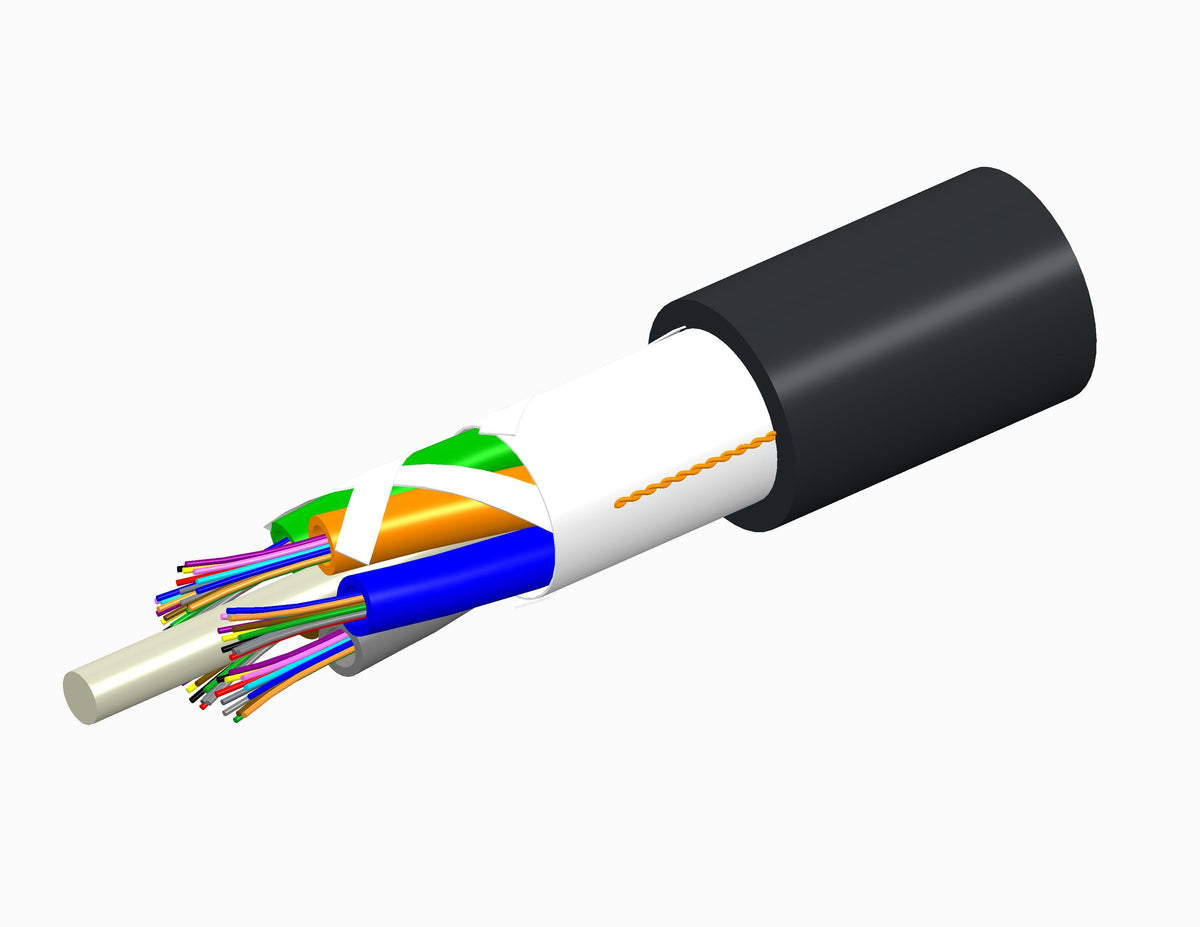

Commscope D024LN8WF06NSHD | TeraSPEED Single Jacket All-Dielectric, Gel-Free, Outdoor Stranded Loose Tube Cable w/HDPE Outer Jacket

$1.36

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

TeraSPEED Single Jacket All-Dielectric, Gel-Free, Outdoor Stranded Loose Tube Cable w/HDPE Outer Jacket

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope

General Specifications

Cable Type	Stranded loose tube
Construction Type	Non-armored
Fiber Type, quantity	24
Fibers per Subunit, quantity	6
Filler, quantity	1
Jacket Color	Black

Dimensions

Buffer Tube/Subunit Diameter	2.5 mm \| 0.098 in
Diameter Over Jacket	10.2 mm \| 0.402 in

Material Specifications

Jacket Material	High density polyethylene (HDPE)

Mechanical Specifications

Minimum Bend Radius, loaded	153 mm \| 6.024 in
Minimum Bend Radius, unloaded	102 mm \| 4.016 in
Tensile Load, long term, maximum	800 N \| 179.847 lbf
Tensile Load, short term, maximum	2700 N \| 606.984 lbf

Optical Specifications

Fiber Type	G.652.D and G.657.A1 , TeraSPEED \| G.652.D and G.657.A1, TeraSPEED \| OS2 \| OS2

Documents and Downloads
