Brand: CommScope
|
SKU:
D15T01P40

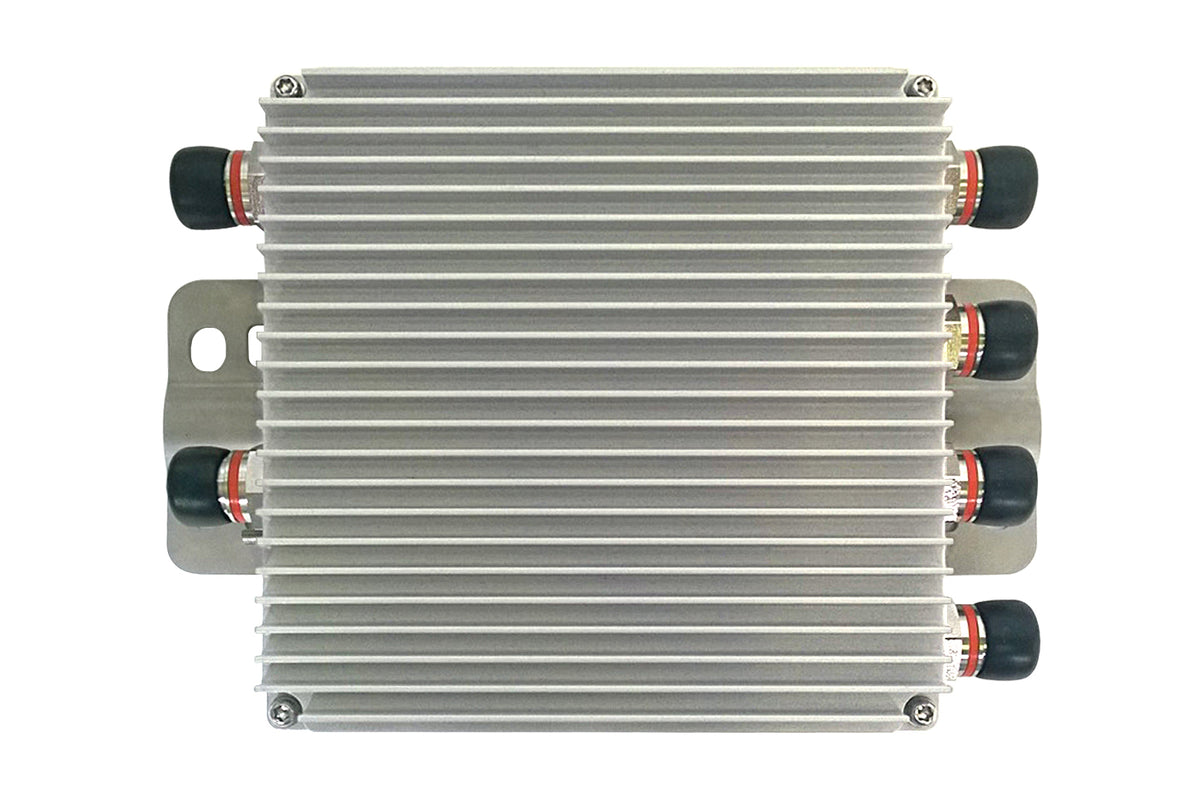

CommScope D15T01P40 | Twin Hybrid Combiner 3300-5925MHz, 4.3-10 Connectors
Regular price
$1,335.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope D15T01P40 | Twin Hybrid Combiner 3300-5925MHz, 4.3-10 Con...
Regular price
$1,335.32
Unit price
Brand: CommScope
|
SKU:
D15T01P40
Regular price
$1,335.32
Unit price
Shipping calculated at checkout.
Description
Description
CommScope D15T01P40 | Twin Hybrid Combiner 3300-5925MHz, 4.3-10 Connectors
Specifications
Specifications
CommScope - D15T01P40 - Product Categories
- Splitters, Combiners & Multiplexers
- RF Conditioning Solutions (Filters & TMAs)
- Combiners
CommScope - D15T01P40 - Product Classification
| Product Type | Hybrid combiner |
|---|
CommScope - D15T01P40 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Twin Hybrid Combiner 3300-5925MHz, 4.3-10 Connectors |
| Model Number | CHB3359T-43 | D15T01P40 |
| AISG Carrier | 2176 KHz ± 100 ppm |
| Color | Gray |
| Connector Interface | 4.3-10 Female |
| Modularity | Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps |
CommScope - D15T01P40 - Additional Information
| Dimensions | - |
|---|---|
| Height | 168 mm | 6.614 in |
| Width | 166 mm | 6.535 in |
| Depth | 50 mm | 1.969 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
| Electrical Specifications | - |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| 3rd Order IMD typical | -161 dBc |
| dc Pass-through | Branch 2 |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Electrical Specifications, AISG | - |
| dc Current, maximum | 2.5 A |
| Electrical Specifications, Branch 1 | - |
| Coupling | 3.2 dB |
| Coupling Tolerance | ±0.5 dB |
| Input Power, PEP | 400 W |
| Input Power, RMS | 25 W |
| Isolation, minimum | 25 dB |
| Operating Frequency Band | 3300 – 5925 MHz |
| Port Designation | Port 1 |
| Return Loss, typical | 22 dB |
