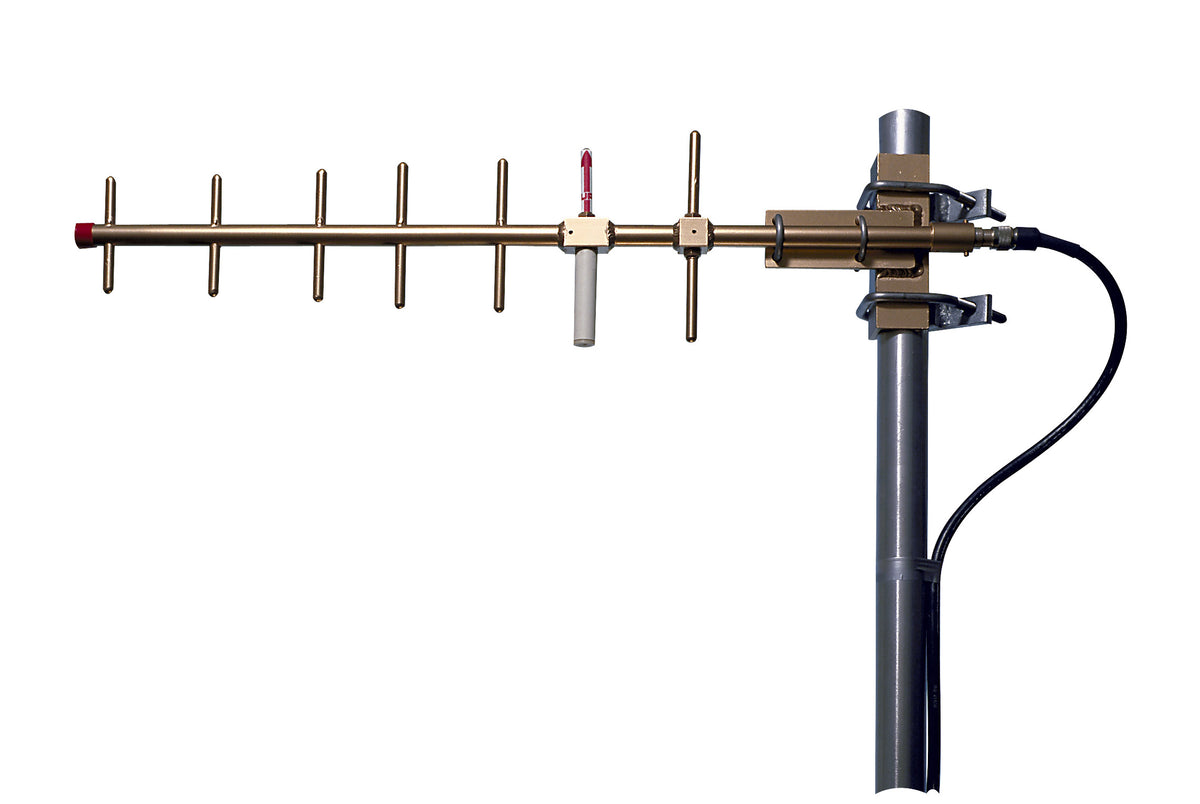

CommScope DB499-K | 1-port sector (yagi) antenna, 890–960 MHz, 60° HPBW, fixed electrical tilt. Mounting pipe diameter, max. 3".
Regular price
$997.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
CommScope DB499-K | 1-port sector (yagi) antenna, 890–960 MHz, 60° HPBW, fixed electrical tilt. Mounting pipe diameter, max. 3".
Specifications
Specifications
CommScope - DB499-K - Product Categories
- Antennas
- Base Station Antennas & Equipment
- Base Station Antennas
CommScope - DB499-K - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | 1-port sector (yagi) antenna, 890–960 MHz, 60° HPBW, fixed electrical tilt. Mounting pipe diameter, max. 3". |
| Model Number | DB499-K |
| Antenna Type | Sector |
| Band | Single band |
| Color | Silver |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
CommScope - DB499-K - Additional Information
| Dimensions | - |
|---|---|
| Width | 137.2 mm | 5.402 in |
| Depth | 25.4 mm | 1 in |
| Length | 762 mm | 30 in |
| Net Weight, without mounting kit | 2.3 kg | 5.071 lb |
| Electrical Specifications | - |
| Impedance | 50 ohm |
| Operating Frequency Band | 890 – 960 MHz |
| Polarization | Vertical |
| Electrical Specifications | - |
| Frequency Band, MHz | 890–960 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 60 |
| Beamwidth, Vertical, degrees | 30 |
| Beam Tilt, degrees | 0 |
| Front-to-Back Ratio at 180°, dB | 15 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 150 |
| Mechanical Specifications | - |
| Wind Loading @ Velocity, maximum | 53.4 N @ 100 mph (12.0 lbf @ 100 mph) |
| Wind Speed, maximum | 201 km/h (125 mph) |
