Brand: CommScope
|
SKU:
465459

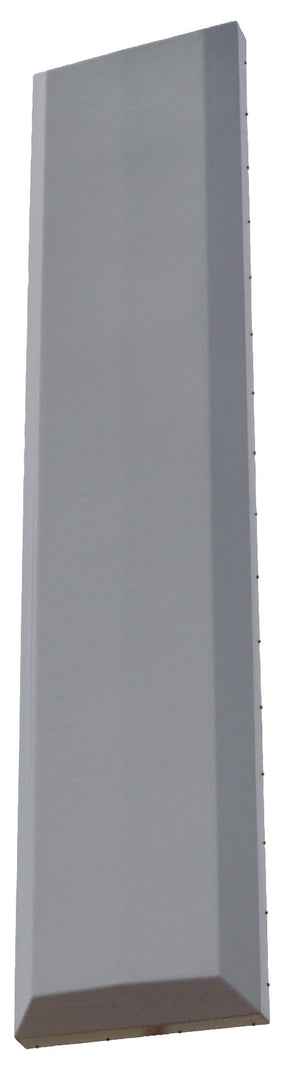

Commscope DB654DG65A-C | 2-port sector antenna, 2x 410–512 MHz, 65° HPBW, fixed electrical tilt
Regular price
$1,919.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DB654DG65A-C | 2-port sector antenna, 2x 410–512 MHz, 65°...
Regular price
$1,919.40
Unit price
Description
Description

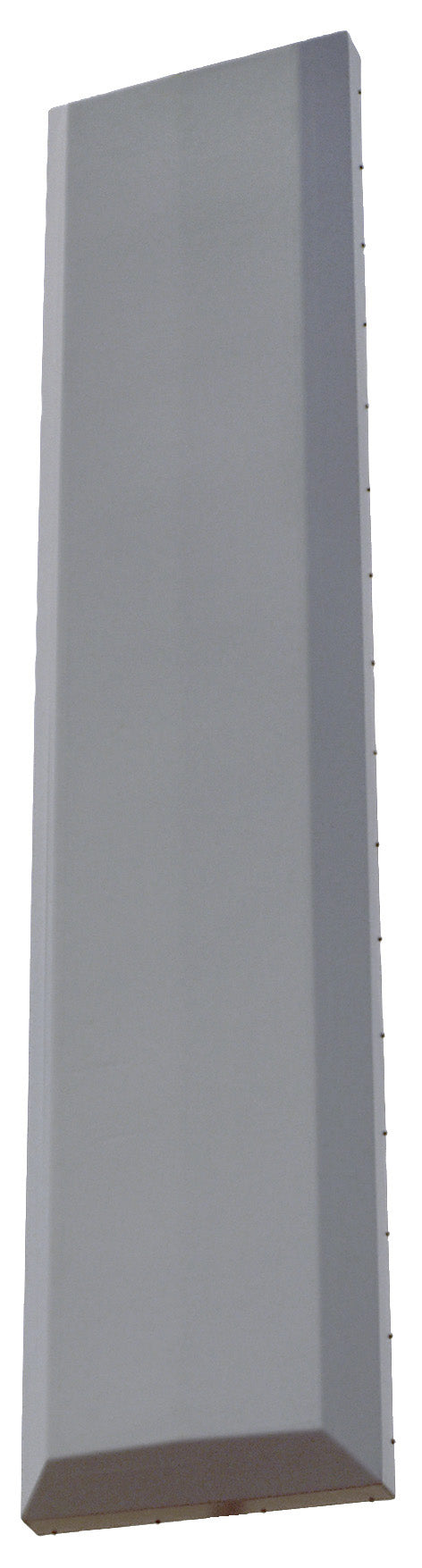

Commscope DB654DG65A-C | 2-port sector antenna, 2x 410–512 MHz, 65° HPBW, fixed electrical tilt
Features and Benefits
- Air dielectric feed system with no screws, rivets, solder, or welding in dipole feed point
Specifications
Specifications
General Specifications
| Antenna Type | Sector |
|---|---|
| Band | Single band |
| Color | Light gray |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Rear |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 483 mm / 19.016 in |
|---|---|
| Depth | 229 mm / 9.016 in |
| Length | 1981 mm / 77.992 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 410 – 512 MHz |
| Polarization | ±45° |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 410–512 |
| Gain, dBi | 15 |
| Beamwidth, Horizontal, degrees | 65 |
| Beamwidth, Vertical, degrees | 17 |
| USLS, typical, dB | 15 |
| Front-to-Back Ratio at 180°, dB | 28 |
| Isolation, Cross Polarization, dB | 30 |
| VSWR / Return loss, dB | 1.4 / 15.6 |
| Input Power per Port, maximum, watts | 600 |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 410 – 512 MHz |
| Polarization | ±45° |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 410–512 |
| Gain, dBi | 15 |
| Beamwidth, Horizontal, degrees | 65 |
| Beamwidth, Vertical, degrees | 17 |
| USLS, typical, dB | 15 |
| Front-to-Back Ratio at 180°, dB | 28 |
| Isolation, Cross Polarization, dB | 30 |
| VSWR / Return loss, dB | 1.4 / 15.6 |
| Input Power per Port, maximum, watts | 600 |
Mechanical Specifications
| Wind Loading at Velocity, maximum | 1,397.6 N @ 150 km/h / 314.2 lbf @ 150 km/h |
|---|---|
| Wind Speed, maximum | 201 km/h / 124.896 mph |
Packaging and Weights
| Net Weight, without mounting kit | 19 kg / 41.888 lb |
|---|
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
