Brand: CommScope
|
SKU:
427101

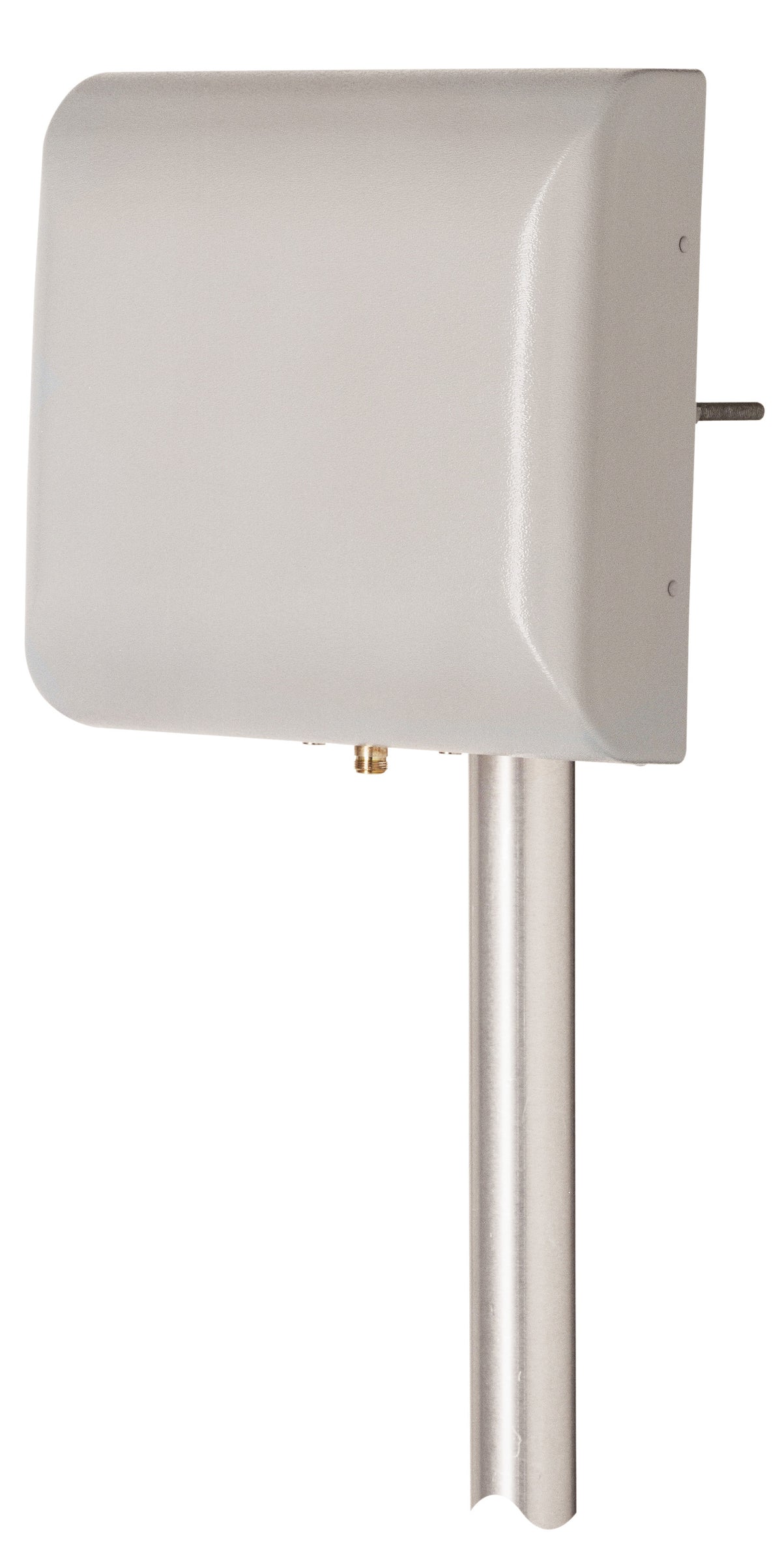

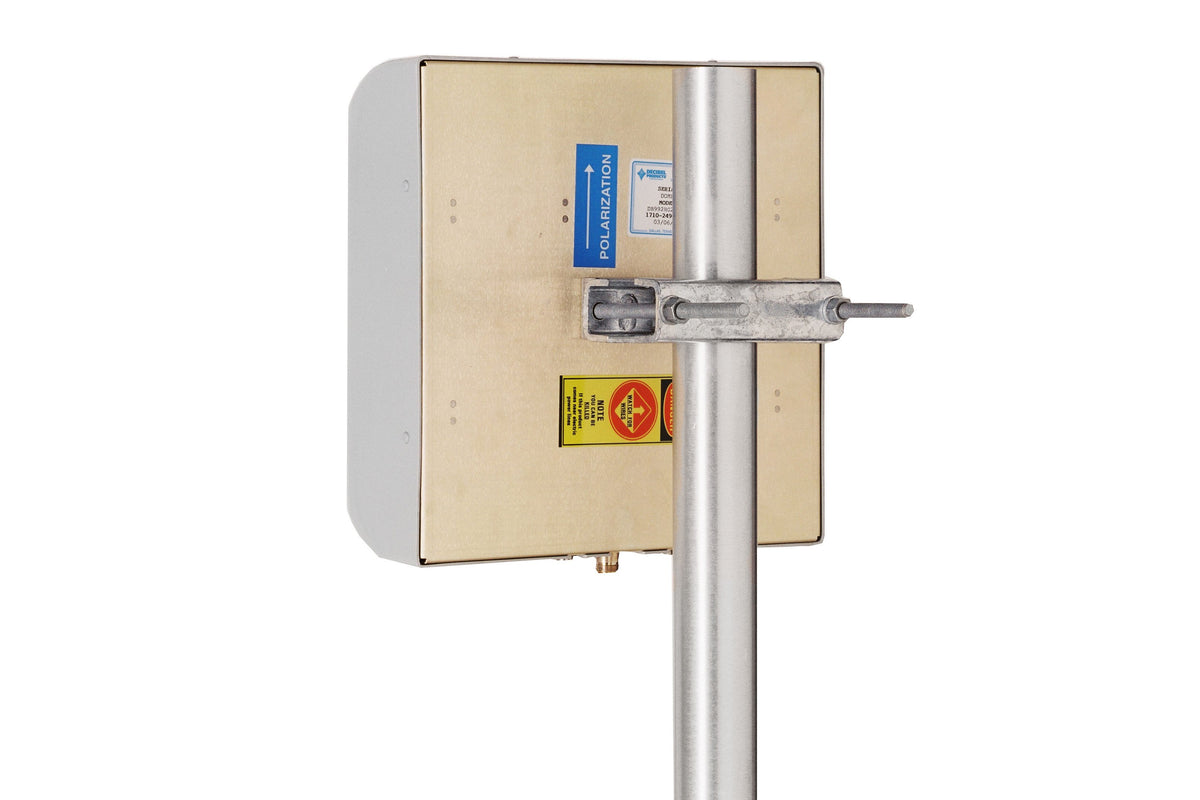

CommScope DB992HG28N-B | 1-port small cell antenna, 1710–2490 MHz, 30° HPBW, fixed electrical tilt
Regular price
$427.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope DB992HG28N-B | 1-port small cell antenna, 1710–2490 MHz, ...
Regular price
$427.21
Unit price
Description
Description
CommScope DB992HG28N-B | 1-port small cell antenna, 1710–2490 MHz, 30° HPBW, fixed electrical tilt
Specifications
Specifications
CommScope - DB992HG28N-B - Product Categories
- Antennas
- Base Station Antennas & Equipment
CommScope - DB992HG28N-B - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | DB992HG28N-B |
| Item Description | 1-port small cell antenna, 1710–2490 MHz, 30° HPBW, fixed electrical tilt |
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 1 |
| RF Connector Quantity, total | 1 |
CommScope - DB992HG28N-B - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Small Cell Antenna |
CommScope - DB992HG28N-B - Physical Specifications
| Dimensions | - |
|---|---|
| Width | 311 mm | 12.244 in |
| Depth | 124 mm | 4.882 in |
| Length | 311 mm | 12.244 in |
| Net Weight, without mounting kit | 1.3 kg | 2.866 lb |
| Mechanical Specifications | - |
| Wind Loading @ Velocity, maximum | 156.0 N @ 150 km/h (35.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 201 km/h (125 mph) |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| CE | Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
