Brand: CommScope
|
SKU:
988881

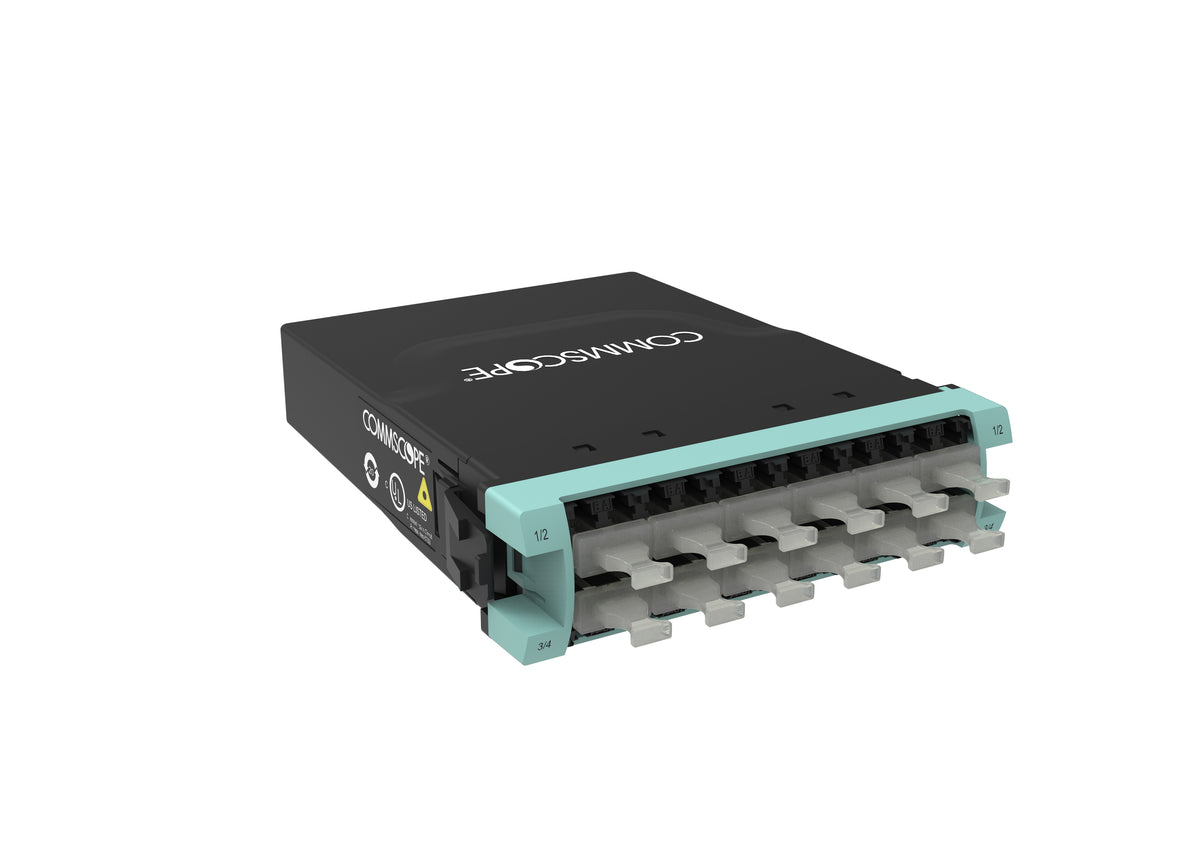

Commscope DM08IP24LCLSULL | G2 ULL Multimode OM4 MPO-8 Distribution Module, 3x8F MPO unpinned to 24F LC Aqua, Method B Enhanced, iPatch Ready
Regular price
$1,012.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope DM08IP24LCLSULL | G2 ULL Multimode OM4 MPO-8 Distribution...
Regular price
$1,012.75
Unit price
Description
Description
Commscope DM08IP24LCLSULL | G2 ULL Multimode OM4 MPO-8 Distribution Module, 3x8F MPO unpinned to 24F LC Aqua, Method B Enhanced, iPatch Ready
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Brand | SYSTIMAX ULL |
General Specifications
| Adapters, quantity, front | 12 |
|---|---|
| Adapters, quantity, rear | 3 |
| Color, front | Aqua |
| Color, rear | Aqua |
| Data Module Type | G2 |
| Intelligence Type | iPatch ready |
| Interface, front | LC |
| Interface Feature, front | Standard |
| Interface, rear | MPO Unpinned |
| Interface Feature, rear | Key up |
| Polarity | Method B Enhanced (ULL) |
| Shuttered | No |
| Total Fibers, quantity | 24 |
| Total Ports, quantity, front | 24 |
Dimensions
| Height | 24.64 mm / 0.97 in |
|---|---|
| Width | 94 mm / 3.701 in |
| Depth | 113.28 mm / 4.46 in |
Optical Specifications
| Fiber Mode | Multimode |
|---|---|
| Fiber Type | OM4, LazrSPEED 550 |
| Insertion Loss Change, temperature | 0.3 dB |
| Insertion Loss, maximum | 0.35 dB |
Environmental Specifications
| Qualification Standards | TIA/EIA-568-C.3 |
|---|---|
| Safety Standard | cUL US 1863 |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- High speed migration SYSTIMAX InstaPATCH 360 and SYSTIMAX Ultra-Low-Loss configuration guideline
- 660000705 ULL MODULE, MPO-8 iPATCH INSTALLATION DRAWING
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- 760236116 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Extended System Warranty
- CommScope Limited Product Warranty
