Brand: CommScope | SKU: 9870103

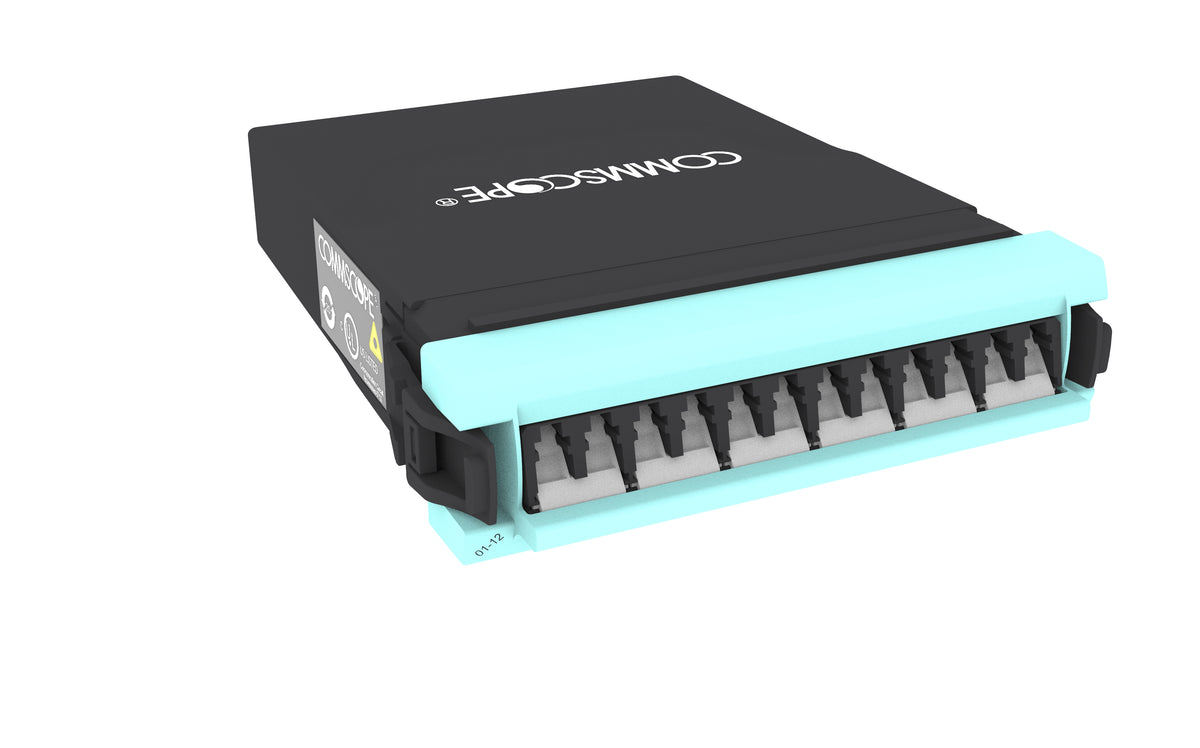

Commscope DM12-12LC-LS-AF | G2 MPOptimate Multimode OM4 MPO-12 Distribution Module, 12LC to 1x12f MPO pinned, internal shutters

$652.63

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope DM12-12LC-LS-AF | G2 MPOptimate Multimode OM4 MPO-12 Distribution Module, 12LC to 1x12f MPO pinned, internal shutters

Specifications

Product Classification

Regional Availability	Asia / Australia/New Zealand / EMEA / Latin America / North America
Portfolio	CommScope
Product Type	Fiber module
Product Series	G2

General Specifications

Color, front	Aqua
Color, rear	Black
Interface, front	LC
Interface Feature, front	Standard
Interface, rear	MPO Pinned
Interface Feature, rear	Key up/down
Polarity	Method A / Pairs, flipped
Shuttered	Yes
Total Fibers, quantity	12

Dimensions

Height	26.42 mm / 1.04 in
Width	96.52 mm / 3.8 in
Depth	117.35 mm / 4.62 in

Optical Specifications

Fiber Mode	Multimode
Fiber Type	OM4
Insertion Loss, maximum	0.35 dB

Environmental Specifications

Qualification Standards	IEC 61753-1 / TIA-568.3-D
Safety Standard	CE / CSA / UL

Packaging and Weights

Packaging quantity	1
Weight, net	0.01 kg / 0.022 lb

Regulatory Compliance/Certifications

ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
