Brand: CommScope
|
SKU:
10302268

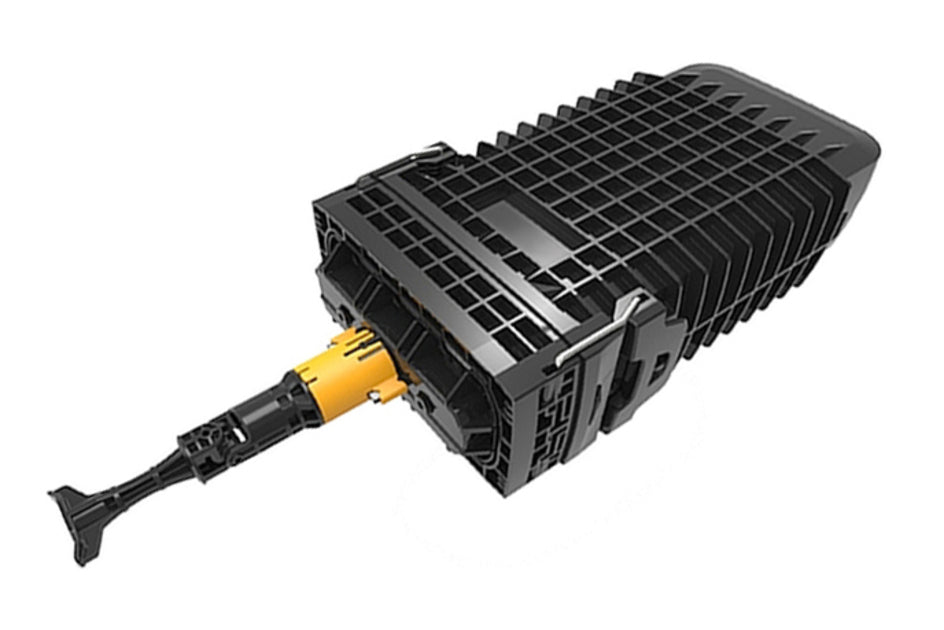

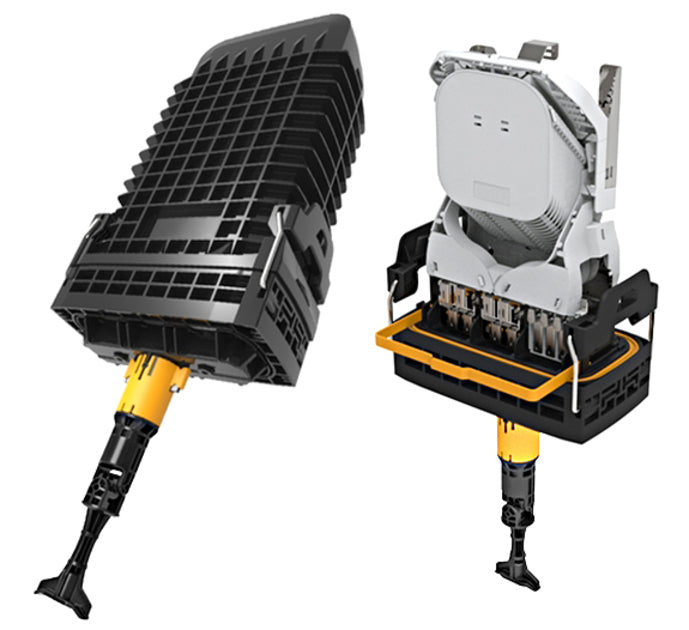

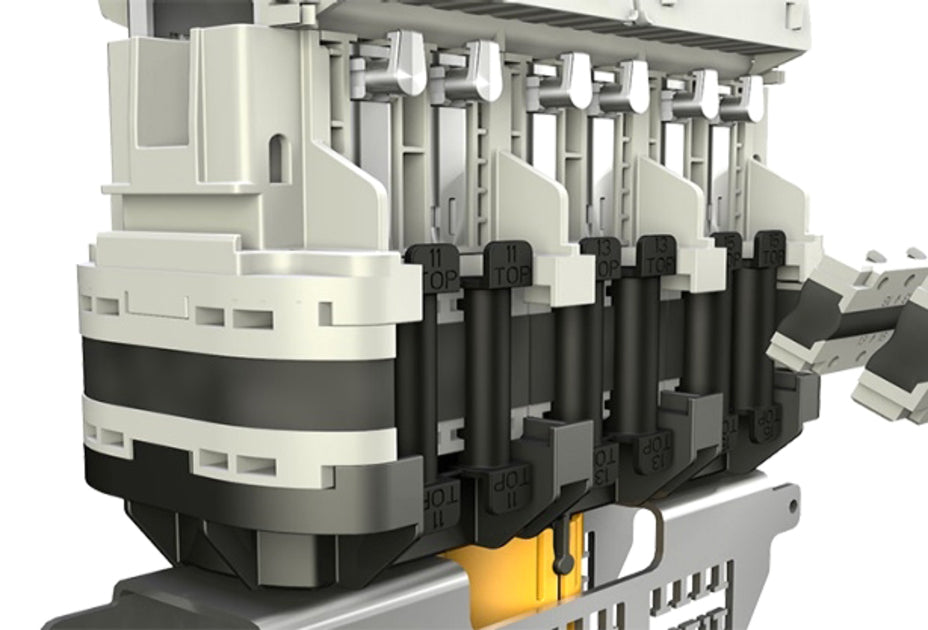

CommScope EH6496-000 | TENIO Small Fiber Optic Splice Closure, Gel Cable Sealing, 4 pre-installed 12-Splice trays
Regular price
$303.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope EH6496-000 | TENIO Small Fiber Optic Splice Closure, Gel ...
Regular price
$303.88
Unit price
Description
Description
CommScope EH6496-000 | TENIO Small Fiber Optic Splice Closure, Gel Cable Sealing, 4 pre-installed 12-Splice trays
CommScope - EH6496-000 - Features
- Single-ended, toolless closure for splicing feeder, access and drop Cables
- Features modular building blocks that fastens installation and reduces inventory
- Gel Cable sealing technology allows easy adding or removing of a wide size range of Cables
- Compatible with most common Cable types: e.g. loose tube, central core, ribbon Fiber
- Compatible with CommScope's CWDM modules and optical splitter trays
Specifications
Specifications
CommScope - EH6496-000 - Specifications
| Regional Availability | EMEA |
|---|---|
| Product Type | Single-ended, rectangular Fiber closure |
| Product Brand | TENIO™ |
| Product Series | TENIO |
| Cable Entry Drop Port Style | Gel block |
| Cable Entry Main Port Style | Gel block |
| Cable Ports Quantity, total | 6 multi-out ports (30 Cables) |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Side latch |
| Closure Style | Single-ended |
| Color | Black |
| Flash Test Valve | None |
| Mounting | Wall |
| Network Area Type | Distribution | Drop |
| Splice Tray Included, quantity | 4 |
| Height | 230 mm | 9.055 in |
| Width | 134 mm | 5.276 in |
| Length | 389 mm | 15.315 in |
| Main Cable Diameter, maximum | 16 mm | 0.63 in |
| Material Type | Impact-resistant polymer |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 1 kg | 2.205 lb |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
