Brand: CommScope
|
SKU:
465715

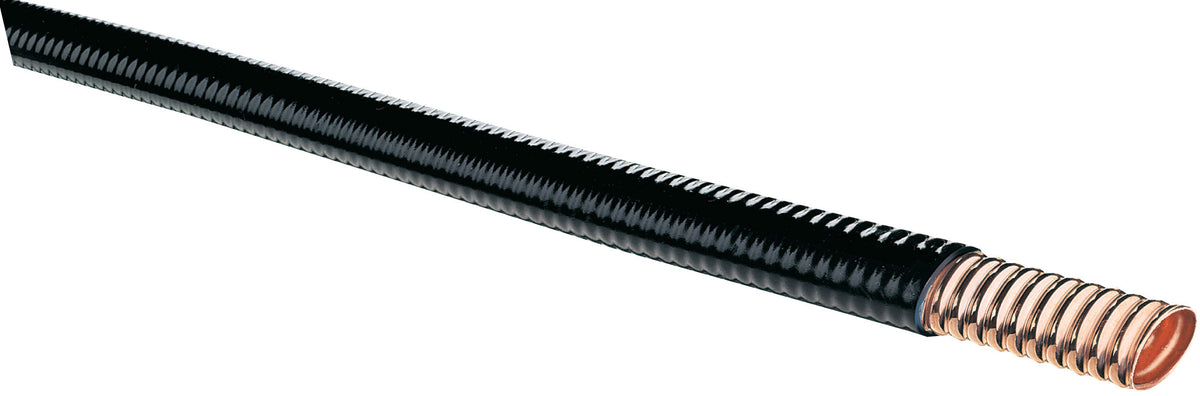

Commscope EW180 | Ew180, Heliax Standard Elliptical Waveguide, 17.3–19.7 Ghz, Black Pe Jacket
Regular price
$21.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope EW180 | Ew180, Heliax Standard Elliptical Waveguide, 17.3...
Regular price
$21.66
Unit price
Description
Description
Commscope EW180 | Ew180, Heliax Standard Elliptical Waveguide, 17.3–19.7 Ghz, Black Pe Jacket
Specifications
Specifications
Commscope - EW180 - Product Categories
- Antennas
- Microwave Antennas & Accessories
- Elliptical Waveguides
Commscope - EW180 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | EW180 |
| Item Description | Ew180, Heliax Standard Elliptical Waveguide, 17.3–19.7 Ghz, Black Pe Jacket |
| Product Classification | - |
| Product Type | Standard elliptical waveguide |
| Product Brand | HELIAX |
| Product Series | Standard |
| General Specifications | - |
| Jacket Color | Black |
| Performance Note | Values typical, unless otherwise stated |
| Dimensions | - |
| Diameter Over Jacket (E Plane) | 20.1 mm | 0.791 in |
| Diameter Over Jacket (H Plane) | 12.4 mm | 0.488 in |
| Cable Volume | 111 L/km | 1.195 ft³/kft |
| Material Specifications | - |
| Minimum Bend Radius, Multiple Bends (E Plane) | 150 mm | 5.906 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 380 mm | 14.961 in |
| Minimum Bend Radius, Single Bend (E Plane) | 150 mm | 5.906 in |
| Minimum Bend Radius, Single Bend (H Plane) | 380 mm | 14.961 in |
| Mechanical Specifications | - |
| Installation temperature,Operating Temperature,Storage Temperature,Attenuation, Ambient Temperature,Average Power, Ambient Temperature,Average Power, Temperature Rise | -40 °C to +60 °C (-40 °F to +140 °F),-55 °C to +85 °C (-67 °F to +185 °F),-70 °C to +85 °C (-94 °F to +185 °F),23.889 °C | 75 °F,40 °C | 104 °F,42 °F | 107.6 °F |
| Environmental Specifications | - |
| Cable weight | 0.22 kg/m | 0.148 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
