Brand: CommScope
|
SKU:
465727

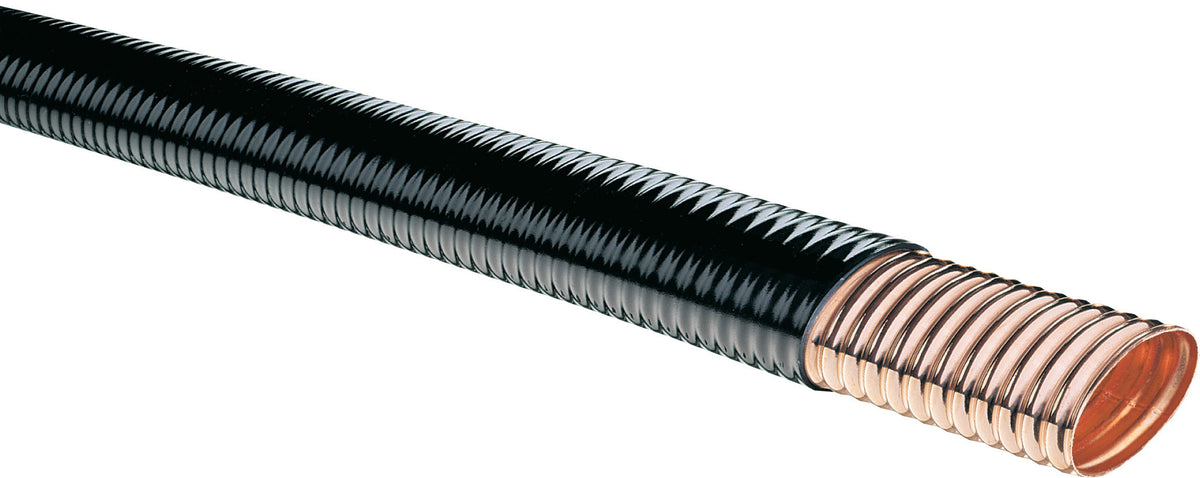

Commscope EW77 | Ew77, Heliax Standard Elliptical Waveguide, 7.125–8.5 Ghz, Black Pe Jacket
Regular price
$32.26
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope EW77 | Ew77, Heliax Standard Elliptical Waveguide, 7.125–...
Regular price
$32.26
Unit price
Brand: CommScope
|
SKU:
465727
Regular price
$32.26
Unit price
Description
Description
Commscope EW77 | Ew77, Heliax Standard Elliptical Waveguide, 7.125–8.5 Ghz, Black Pe Jacket
Specifications
Specifications
Commscope - EW77 - Product Categories
- Antennas
- Microwave Antennas & Accessories
- Elliptical Waveguides
Commscope - EW77 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | EW77 |
| Item Description | Ew77, Heliax Standard Elliptical Waveguide, 7.125–8.5 Ghz, Black Pe Jacket |
| Product Classification | - |
| Product Type | Standard elliptical waveguide |
| Product Brand | HELIAX |
| Product Series | Standard |
| General Specifications | - |
| Jacket Color | Black |
| Performance Note | Values typical, unless otherwise stated |
| Dimensions | - |
| Diameter Over Jacket (E Plane) | 43.6 mm | 1.717 in |
| Diameter Over Jacket (H Plane) | 25.4 mm | 1 in |
| Cable Volume | 585 L/km | 6.297 ft³/kft |
| Material Specifications | - |
| Minimum Bend Radius, Multiple Bends (E Plane) | 230 mm | 9.055 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 635 mm | 25 in |
| Minimum Bend Radius, Single Bend (E Plane) | 180 mm | 7.087 in |
| Minimum Bend Radius, Single Bend (H Plane) | 510 mm | 20.079 in |
| Mechanical Specifications | - |
| Installation temperature,Operating Temperature,Storage Temperature,Attenuation, Ambient Temperature,Average Power, Ambient Temperature,Average Power, Temperature Rise | -40 °C to +60 °C (-40 °F to +140 °F),-55 °C to +85 °C (-67 °F to +185 °F),-70 °C to +85 °C (-94 °F to +185 °F),23.889 °C | 75 °F,40 °C | 104 °F,42 °F | 107.6 °F |
| Environmental Specifications | - |
| Cable weight | 0.67 kg/m | 0.450 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
