Brand: CommScope
|
SKU:
465747

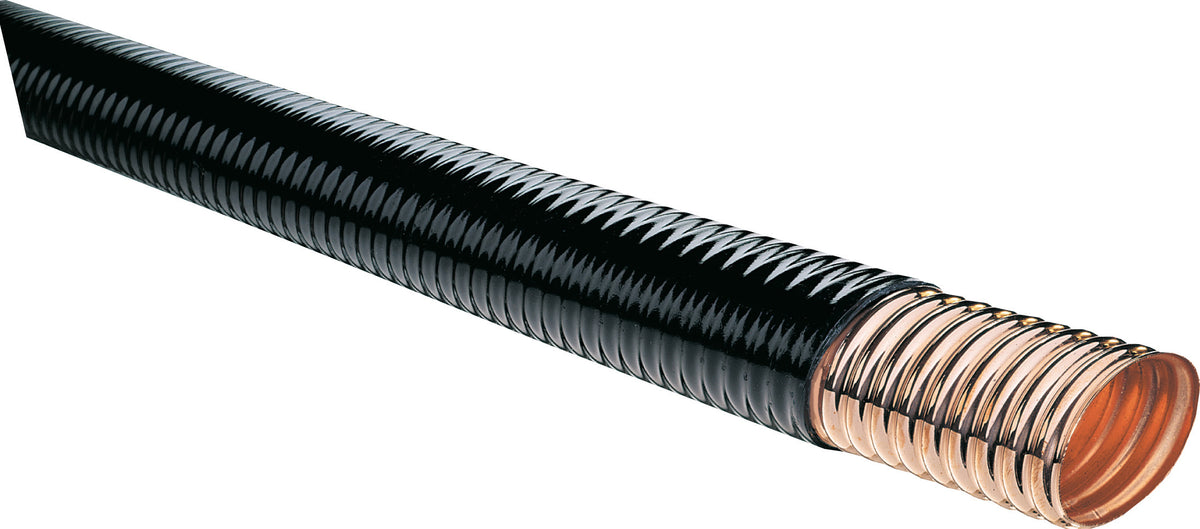

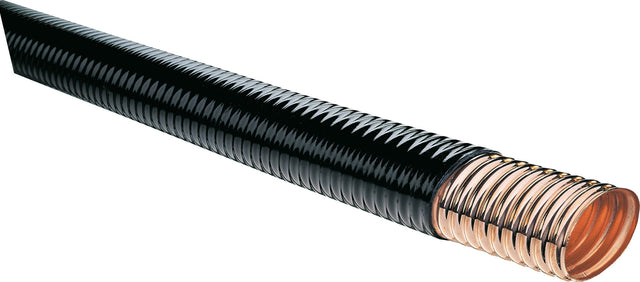

Commscope EWP43 | Ewp43, Heliax Premium Elliptical Waveguide, 4.4–5.0 Ghz, Black Pe Jacket
Regular price
$44.88
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope EWP43 | Ewp43, Heliax Premium Elliptical Waveguide, 4.4–5...
Regular price
$44.88
Unit price
Brand: CommScope
|
SKU:
465747
Regular price
$44.88
Unit price
Description
Description
Commscope EWP43 | Ewp43, Heliax Premium Elliptical Waveguide, 4.4–5.0 Ghz, Black Pe Jacket
Specifications
Specifications
Commscope - EWP43 - Product Categories
- Antennas
- Microwave Antennas & Accessories
- Elliptical Waveguides
Commscope - EWP43 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | EWP43 |
| Item Description | Ewp43, Heliax Premium Elliptical Waveguide, 4.4–5.0 Ghz, Black Pe Jacket |
| Product Classification | - |
| Product Type | Premium elliptical waveguide |
| Product Brand | HELIAX |
| Product Series | Premium |
| General Specifications | - |
| Jacket Color | Black |
| Performance Note | Values typical, unless otherwise stated |
| Dimensions | - |
| Diameter Over Jacket (E Plane) | 71 mm | 2.795 in |
| Diameter Over Jacket (H Plane) | 41 mm | 1.614 in |
| Cable Volume | 1690 L/km | 18.191 ft³/kft |
| Material Specifications | - |
| Minimum Bend Radius, Multiple Bends (E Plane) | 381 mm | 15 in |
| Minimum Bend Radius, Multiple Bends (H Plane) | 1016 mm | 40 in |
| Minimum Bend Radius, Single Bend (E Plane) | 280 mm | 11.024 in |
| Minimum Bend Radius, Single Bend (H Plane) | 711 mm | 27.992 in |
| Mechanical Specifications | - |
| Installation temperature,Operating Temperature,Storage Temperature,Attenuation, Ambient Temperature,Average Power, Ambient Temperature,Average Power, Temperature Rise | -40 °C to +60 °C (-40 °F to +140 °F),-55 °C to +85 °C (-67 °F to +185 °F),-70 °C to +85 °C (-94 °F to +185 °F),23.889 °C | 75 °F,40 °C | 104 °F,42 °F | 107.6 °F |
| Environmental Specifications | - |
| Cable weight | 1.2 kg/m | 0.806 lb/ft |
| Regulatory Compliance/Certifications | - |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
