Brand: CommScope
|
SKU:
EWP52-58

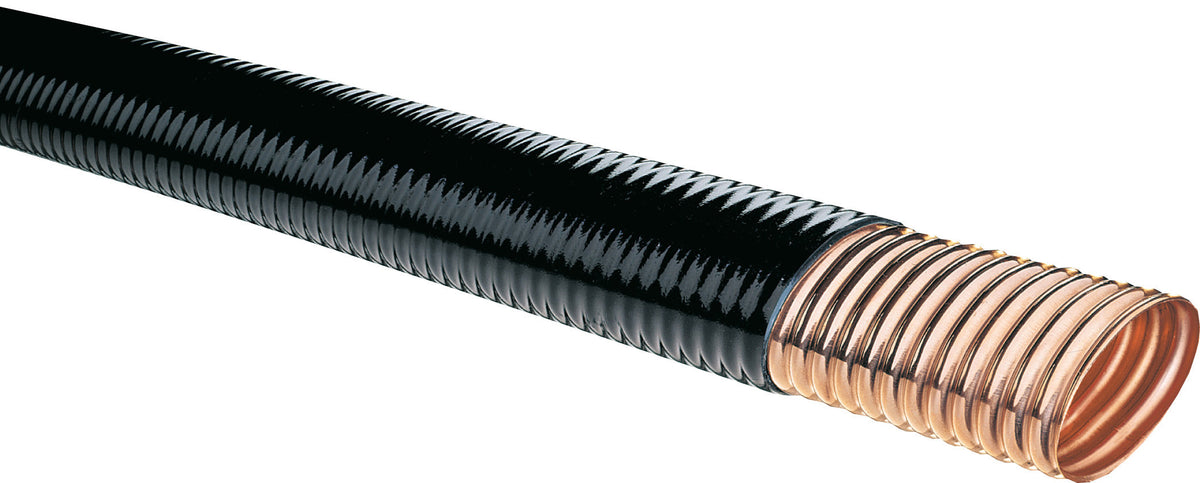

Commscope EWP52-58 | EWP52, HELIAX Premium Elliptical Waveguide, 5.725–6.425 GHz, black PE jacket
Regular price
$43.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope EWP52-58 | EWP52, HELIAX Premium Elliptical Waveguide, 5....
Regular price
$43.09
Unit price
Description
Description
EWP52, HELIAX Premium Elliptical Waveguide, 5.725–6.425 GHz, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Jacket Color | Black |
|---|---|
| Performance Note | Values typical, unless otherwise stated |
Dimensions
| Diameter Over Jacket (E Plane) | 57.2 mm | 2.252 in |
|---|---|
| Diameter Over Jacket (H Plane) | 33.3 mm | 1.311 in |
| Cable Volume | 1045 L/km | 11.248 ft³/kft |
Electrical Specifications
| eTE11 Mode Cutoff | 3.65 GHz |
|---|---|
| Group Delay at Frequency | 126 ns/100 ft @ 6.200 GHz | 413 ns/100 m @ 6.200 GHz |
| Operating Frequency Band | 5.725 – 6.425 GHz |
Material Specifications
| Conductor Material | Corrugated copper |
|---|---|
| Jacket Material | PE |
Mechanical Specifications
| Minimum Bend Radius, Multiple Bends (E Plane) | 305 mm | 12.008 in |
|---|---|
| Minimum Bend Radius, Multiple Bends (H Plane) | 810 mm | 31.89 in |
| Minimum Bend Radius, Single Bend (E Plane) | 200 mm | 7.874 in |
