Brand: CommScope
|
SKU:
465757

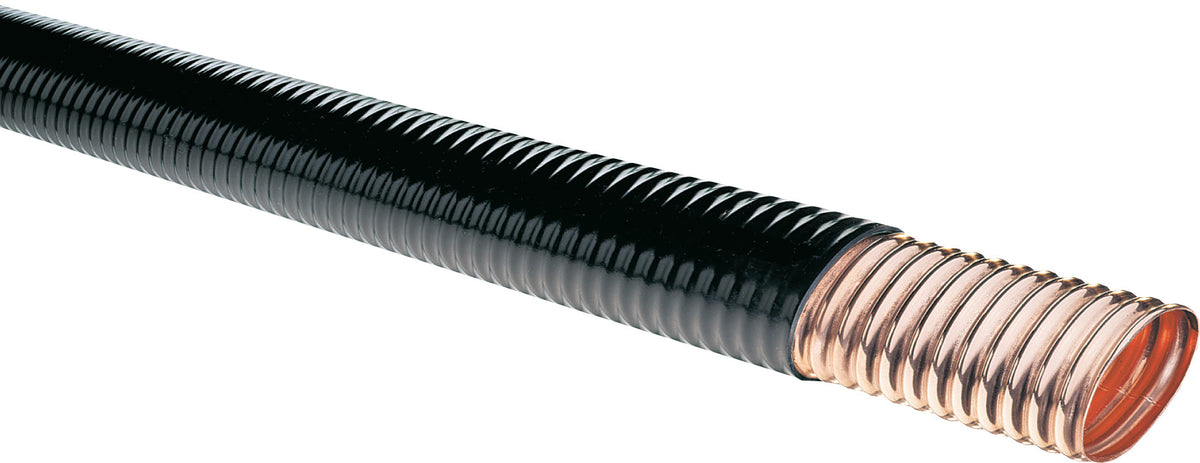

Commscope EWP64-71 | EWP64, HELIAX Premium Elliptical Waveguide, 7.125–7.75 GHz, black PE jacket
Regular price
$115.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope EWP64-71 | EWP64, HELIAX Premium Elliptical Waveguide, 7....
Regular price
$115.03
Unit price
Description
Description
Commscope EWP64-71 | EWP64, HELIAX Premium Elliptical Waveguide, 7.125–7.75 GHz, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Jacket Color | Black |
|---|---|
| Performance Note | Values typical, unless otherwise stated |
Dimensions
| Diameter Over Jacket (E Plane) | 48.5 mm / 1.909 in |
|---|---|
| Diameter Over Jacket (H Plane) | 28.4 mm / 1.118 in |
| Cable Volume | 725 L/km / 7.804 ft³/kft |
Electrical Specifications
| eTE11 Mode Cutoff | 4.32 GHz |
|---|---|
| Operating Frequency Band | 7.125 – 7.75 GHz |
Material Specifications
| Conductor Material | Corrugated copper |
|---|---|
| Jacket Material | PE |
Mechanical Specifications
| Minimum Bend Radius, Multiple Bends (E Plane) | 260 mm / 10.236 in |
|---|---|
| Minimum Bend Radius, Multiple Bends (H Plane) | 685 mm / 26.969 in |
| Minimum Bend Radius, Single Bend (E Plane) | 260 mm / 10.236 in |
| Minimum Bend Radius, Single Bend (H Plane) | 685 mm / 26.969 in |
| Maximum Twist | 3.281 °/m / 1 °/ft |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 23.889 °C / 75 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Temperature Rise | 42 °F / 107.6 °F |
Packaging and Weights
| Cable weight | 0.73 kg/m / 0.491 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
