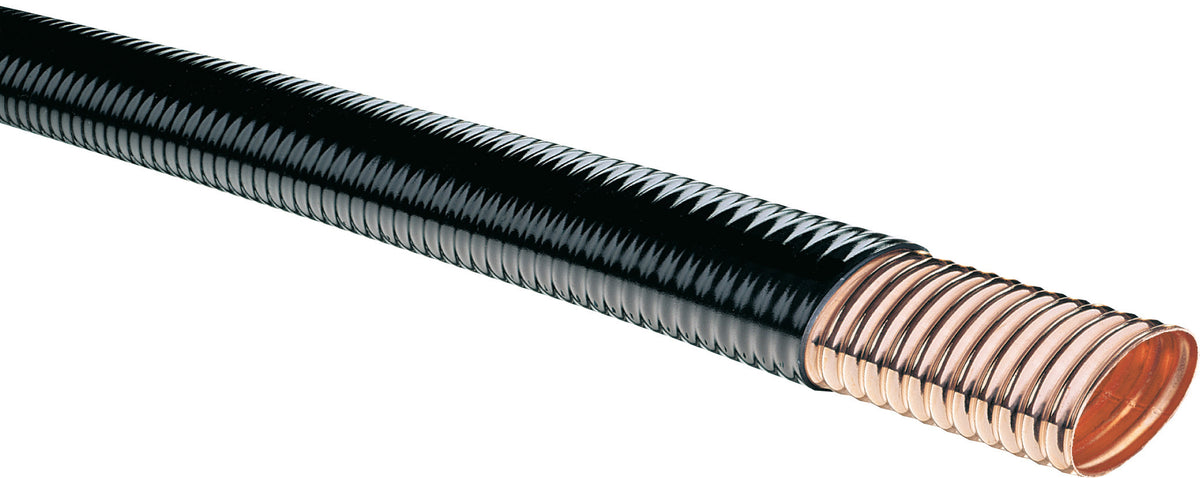

Commscope EWP77-71W | EWP77, HELIAX Premium Elliptical Waveguide, 7.125–8.5 GHz, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Jacket Color | Black |
|---|---|
| Performance Note | Values typical, unless otherwise stated |
Dimensions
| Diameter Over Jacket (E Plane) | 43.6 mm / 1.717 in |
|---|---|
| Diameter Over Jacket (H Plane) | 25.4 mm / 1 in |
| Cable Volume | 585 L/km / 6.297 ft³/kft |
Electrical Specifications
| eTE11 Mode Cutoff | 4.72 GHz |
|---|---|
| Operating Frequency Band | 7.125 – 8.5 GHz |
Material Specifications
| Conductor Material | Corrugated copper |
|---|---|
| Jacket Material | PE |
Mechanical Specifications
| Minimum Bend Radius, Multiple Bends (E Plane) | 230 mm / 9.055 in |
|---|---|
| Minimum Bend Radius, Multiple Bends (H Plane) | 635 mm / 25 in |
| Minimum Bend Radius, Single Bend (E Plane) | 180 mm / 7.087 in |
| Minimum Bend Radius, Single Bend (H Plane) | 510 mm / 20.079 in |
| Maximum Twist | 3.281 °/m / 1 °/ft |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 23.889 °C / 75 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Temperature Rise | 42 °F / 107.6 °F |
Packaging and Weights
| Cable weight | 0.67 kg/m / 0.450 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
