Commscope EWSH-85 | Universal Snap-in Hanger for elliptical wavegui...
Regular price
$170.67
Unit price
Brand: CommScope
|
SKU:
465772
Regular price
$170.67
Unit price
Description
Description

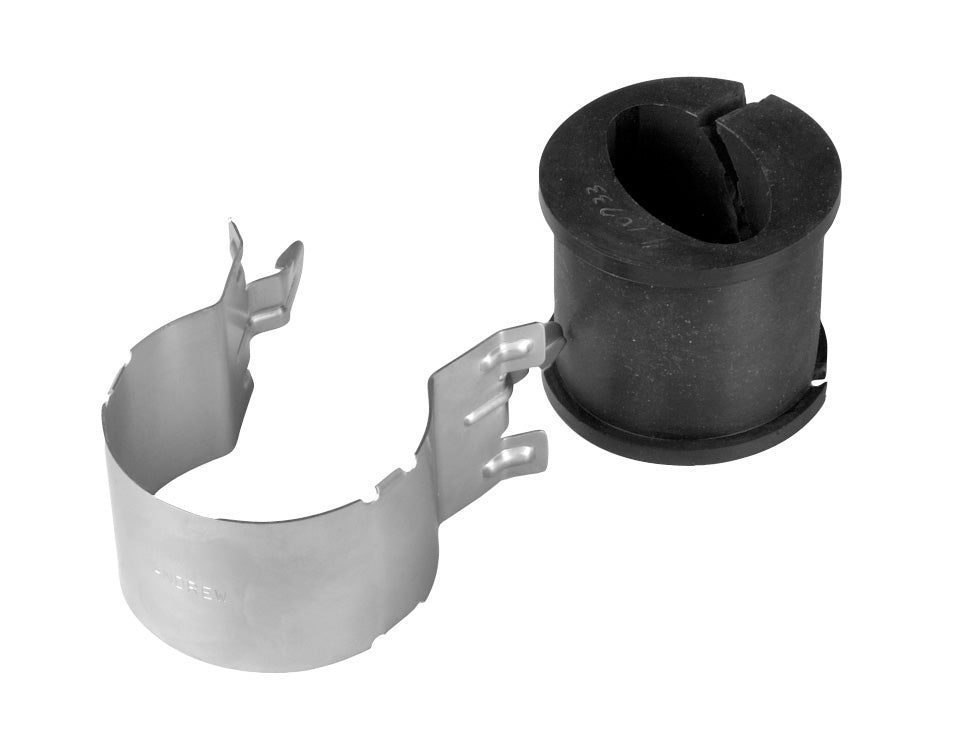

Commscope EWSH-85 | Universal Snap-in Hanger for elliptical waveguide 85
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|
General Specifications
| Cable Type | Elliptical waveguide |
|---|---|
| Cables per Hanger | 1 |
| Color | Silver |
| Hanger Type | Snap-in hanger |
| Mounting | 3/4 in through hole |
Dimensions
| Height | 40.894 mm / 1.61 in |
|---|---|
| Width | 51.054 mm / 2.01 in |
| Length | 82.042 mm / 3.23 in |
| Compatible Diameter, maximum | 30.988 mm / 1.22 in |
| Compatible Diameter, minimum | 26.67 mm / 1.05 in |
| Waveguide Size | WR90 / WG16 / R100 |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Stainless steel |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Corrosion Resistance, minimum with no degredation | ?500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
Packaging and Weights
| Height, packed | 20 cm / 7.874 in |
|---|---|
| Width, packed | 20 cm / 7.874 in |
| Length, packed | 20 cm / 7.874 in |
| Packaging quantity | 10 |
| Weight, gross | 1.6 kg / 3.527 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
