Brand: CommScope
|
SKU:
465965

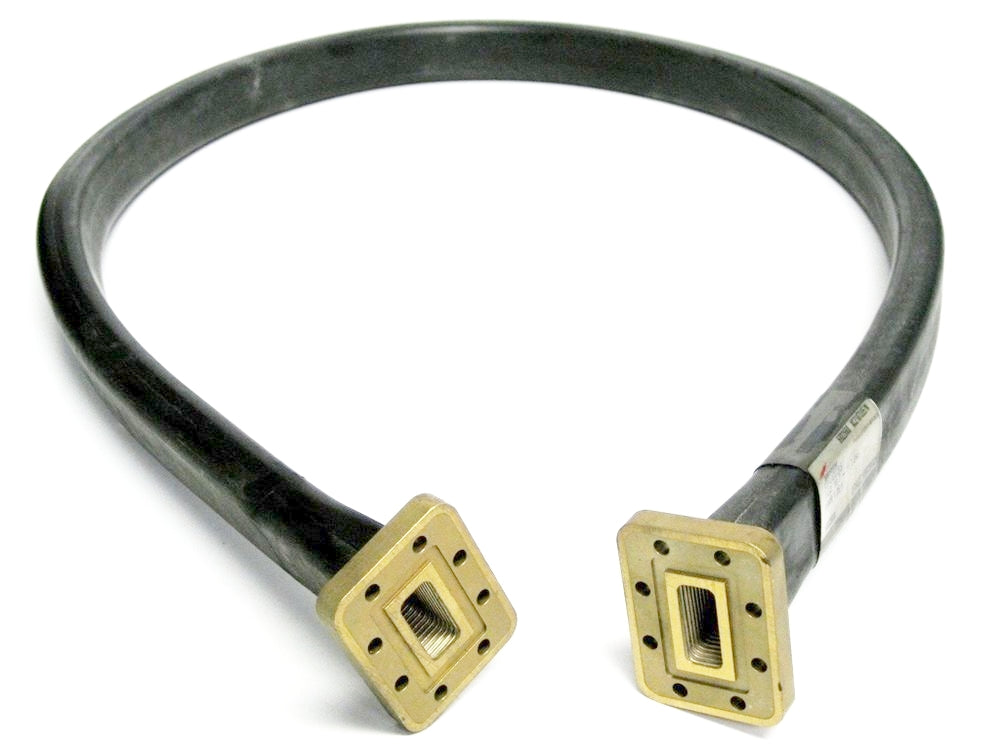

Commscope F075HHS1 | FlexTwist Flexible Twist for WR75, 10.0–15.0 GHz, with interface types PDR120 and PDR120, 300 mm
Regular price
$443.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope F075HHS1 | FlexTwist Flexible Twist for WR75, 10.0–15.0 G...
Regular price
$443.05
Unit price
Description
Description
Commscope F075HHS1 | FlexTwist Flexible Twist for WR75, 10.0–15.0 GHz, with interface types PDR120 and PDR120, 300 mm
Specifications
Specifications
Product Classification
| Product Type | Rectangular waveguide, flexible twist |
|---|---|
| Product Brand | FlexTwist |
General Specifications
| Component | Flexible Twist |
|---|---|
| Interface | PDR120 |
| Interface 2 | PDR120 |
Dimensions
| Length | 300 mm / 11.811 in |
|---|---|
| Waveguide Size | WR75 / WG17 / R120 |
Electrical Specifications
| Attenuation | 0.59 dB/m / 0.18 dB/ft |
|---|---|
| Average Power | 750 W |
| Operating Frequency Band | 10.0 – 15.0 GHz |
| Peak Power | 140 kW |
| VSWR | 1.10000002384185 |
Mechanical Specifications
| Minimum Bend Radius, Multiple Bends (E Plane) | 64 mm / 2.52 in |
|---|---|
| Minimum Bend Radius, Multiple Bends (H Plane) | 115 mm / 4.528 in |
| Maximum Twist | 360 °/m / 109.728 °/ft |
| Pressurization, maximum | 0.31 N/mm² / 45 psi |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
