Brand: CommScope | SKU: F1HM-D

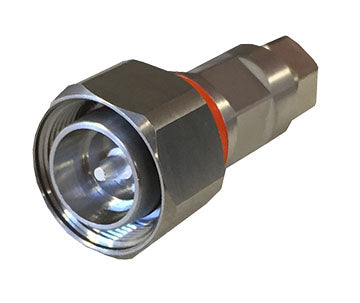

CommScope F1HM-D | 4.3-10 Male for 1/4 in FSJ1-50A cable

Name: CommScope F1HM-D | 4.3-10 Male for 1/4 in FSJ1-50A cable
Brand: Anixter
SKU: F1HM-D
Price: 29.45 USD
Availability: InStock

$29.45

Shipping calculated at checkout.

Description

Product Type	Wireless and radiating connector
Product Brand	HELIAX
Product Series	FSJ1-50A \| FSJ1-50A

Brand Name	CommScope
Item Description	4.3-10 Male for 1/4 in FSJ1-50A cable
Model Number	F1HM-D
Body Style	Straight
Cable Family	FSJ1-50A
Inner Contact Attachment Method	Captivated
Inner Contact Plating	Silver
Interface	4.3-10 Male
Mounting Angle	Straight
Outer Contact Attachment Method	Clamp
Outer Contact Plating	Trimetal

Dimensions	-
Length	48.77 mm \| 1.920 in
Diameter	23.88 mm \| 0.940 in
Nominal Size	1/4 in
Electrical Specifications	-
3rd Order IMD at Frequency	-116 dBm @ 1800 MHz
3rd Order IMD Dynamic Test Method	Two +43 dBm carriers
3rd Order IMD Dynamic, typical	-116 dBm
Insertion Loss Coefficient, typical	0.05
Average Power at Frequency	600.0 W @ 900 MHz
Cable Impedance	50 ohm
Connector Impedance	50 ohm
dc Test Voltage	1600 V
Inner Contact Resistance, maximum	0.8 mOhm
Insulation Resistance, minimum	5000 mOhm
Operating Frequency Band	0 – 12000 MHz
Outer Contact Resistance, maximum	1.5 mOhm
Peak Power, maximum	10 kW
RF Operating Voltage, maximum (vrms)	707 V
Shielding Effectiveness	-110 dB
Return Loss/VSWR	-
Frequency Band	VSWR
Return Loss (dB)	45–2700 MHz
