Brand: CommScope
|
SKU:
10225626

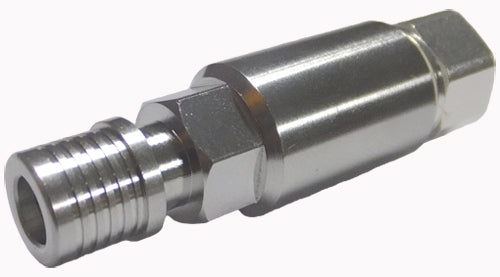

CommScope F1TQM-HC | QMA Male connector for 1/4 in FSJ1-50A cable
Regular price
$28.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope F1TQM-HC | QMA Male connector for 1/4 in FSJ1-50A cable
Regular price
$28.04
Unit price
Description
Description
CommScope F1TQM-HC | QMA Male connector for 1/4 in FSJ1-50A cable
Specifications
Specifications
CommScope - F1TQM-HC - Product Categories
- Connectors
- Wireless Transmission Connectors
- Wireless & Radiating Connectors
CommScope - F1TQM-HC - Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
| Product Series | FSJ1-50A |
CommScope - F1TQM-HC - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | QMA Male connector for 1/4 in FSJ1-50A cable |
| Model Number | F1TQM-HC |
| Body Style | Straight |
| Cable Family | FSJ1-50A |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Gold |
| Interface | QMA Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-clamping |
| Outer Contact Plating | Trimetal |
CommScope - F1TQM-HC - Additional Information
| Dimensions | - |
|---|---|
| Length | 49.78 mm | 1.960 in |
| Diameter | 14.48 mm | 0.570 in |
| Nominal Size | 1/4 in |
| Electrical Specifications | - |
| Average Power at Frequency | 0.4 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1600 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Peak Power, maximum | 6.4 kW |
| RF Operating Voltage, maximum (vrms) | 565 V |
| Shielding Effectiveness | -110 dB |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 824–2200 MHz |
| Mechanical Specifications | - |
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
| Interface Durability | 150 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
