Brand: CommScope
|
SKU:
604344

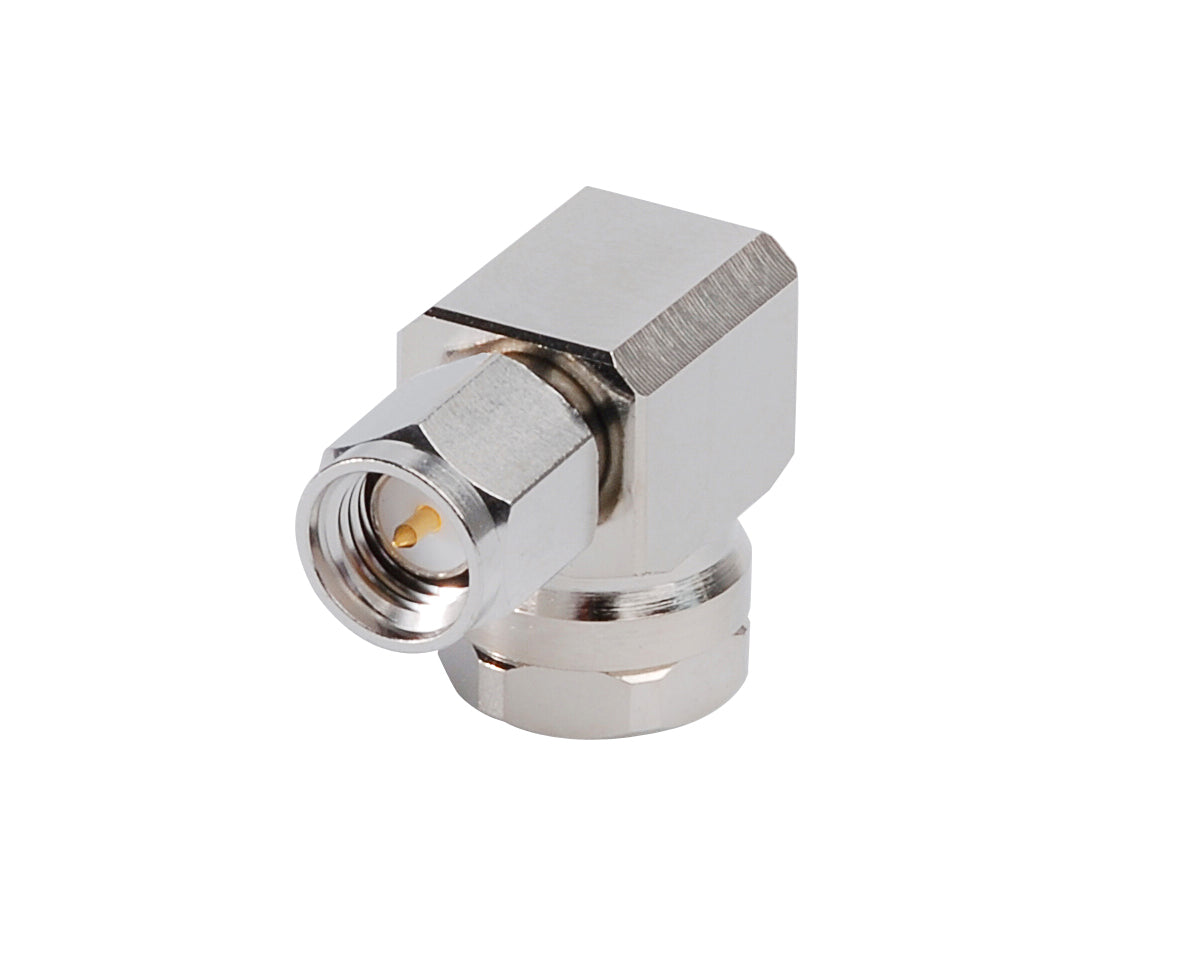

Commscope F1TSR | SMA Male Right Angle for 1/4 in FSJ1-50A cable
Regular price
$35.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope F1TSR | SMA Male Right Angle for 1/4 in FSJ1-50A cable
Regular price
$35.70
Unit price
Description
Description
Commscope F1TSR | SMA Male Right Angle for 1/4 in FSJ1-50A cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Body Style | Right angle |
|---|---|
| Cable Family | FSJ1-50A |
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | SMA Male |
| Mounting Angle | Right angle |
| Outer Contact Attachment Method | Tab-flare |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 11.43 mm / 0.450 in |
|---|---|
| Width | 17.02 mm / 0.670 in |
| Length | 21.08 mm / 0.830 in |
| Right Angle Length | 17.02 mm / 0.670 in |
| Diameter | 11.43 mm / 0.450 in |
| Nominal Size | 1/4 in |
Electrical Specifications
| Average Power at Frequency | 0.4 kW/900 MHz |
|---|---|
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1000 V |
| Inner Contact Resistance, maximum | 3 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 12000 MHz |
| Outer Contact Resistance, maximum | 2.5 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
Mechanical Specifications
| Connector Retention Tensile Force | 449.27 N / 101.000 lbf |
|---|---|
| Coupling Nut Proof Torque | 1.7 N-m / 15.046 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-1:9.3.6 |
| Coupling Nut Retention Force | 180.02 N / 40.470 lbf |
| Coupling Nut Retention Force Method | IEC 61169-1:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-1:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and Weights
| Weight, net | 12.08 g / 0.027 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
