Brand: CommScope
|
SKU:
467196

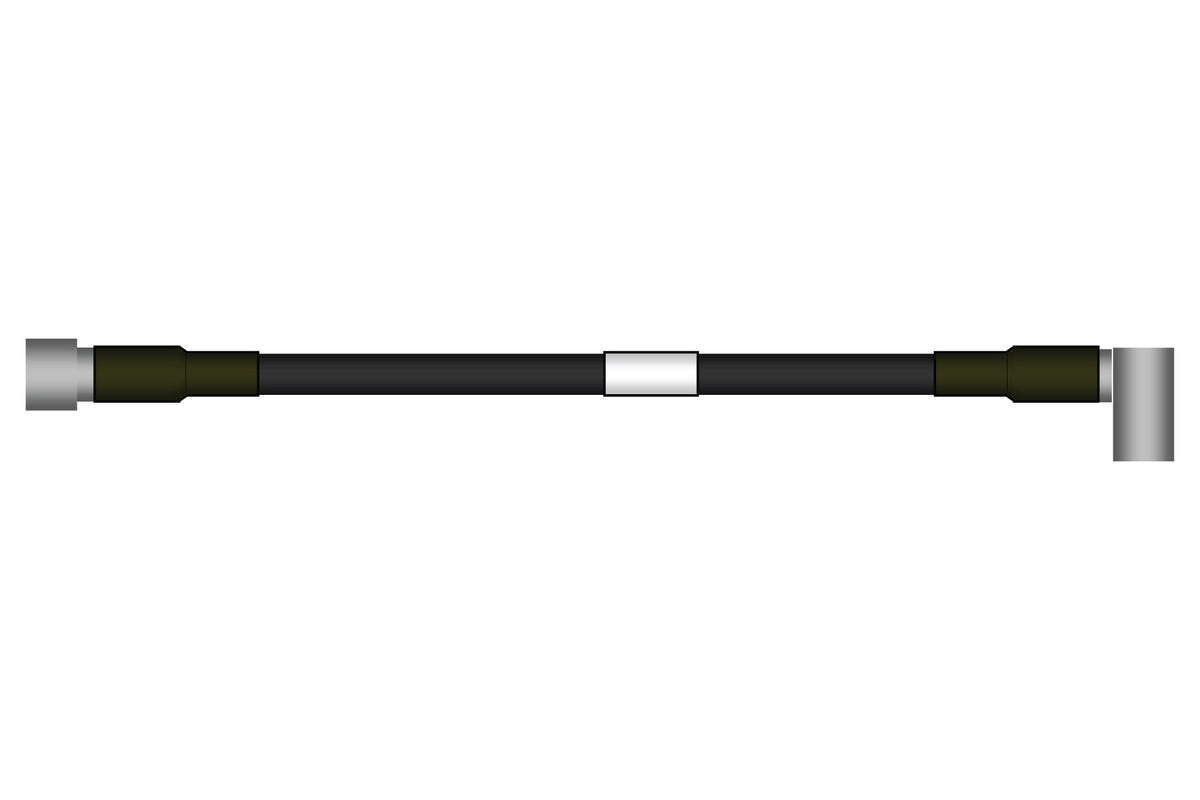

CommScope F4A-PDMDR-1M | FSJ4-50B SureFlex Jumper with interface types 7-16 DIN Male and 7-16 DIN Male Right Angle, 1 m
Regular price
$24.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope F4A-PDMDR-1M | FSJ4-50B SureFlex Jumper with interface ty...
Regular price
$24.29
Unit price
Description
Description
CommScope F4A-PDMDR-1M | FSJ4-50B SureFlex Jumper with interface types 7-16 DIN Male and 7-16 DIN Male Right Angle, 1 m
Specifications
Specifications
CommScope - F4A-PDMDR-1M - Product Categories
- Cable Assemblies
- Wireless Cable Assemblies
- Coaxial Cable Assemblies
CommScope - F4A-PDMDR-1M - Product Classification
| Product Type | SureFlexstandard |
|---|---|
| Product Brand | HELIAX| SureFlex |
| Product Series | FSJ4-50B |
CommScope - F4A-PDMDR-1M - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FSJ4-50B SureFlex Jumper with interface types 7-16 DIN Male and 7-16 DIN Male Right Angle, 1 m |
| Model Number | F4A-PDMDR-1M |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Right angle |
| Interface, Connector A | 7-16 DIN Male |
| Interface, Connector B | 7-16 DIN Male |
| Specification Sheet Revision Level | A |
CommScope - F4A-PDMDR-1M - Additional Information
| Dimensions | - |
|---|---|
| Length | 1 m | 3.281 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/2 in |
| Electrical Specifications | - |
| DTF, Connector A | -32 dB |
| DTF, Connector B | -32 dB |
| Return Loss/VSWR | - |
| Frequency Band | VSWR, typical |
| Return Loss, typical (dB) | 0–3000 MHz |
| Environmental Specifications | - |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
