Brand: CommScope
|
SKU:
467220

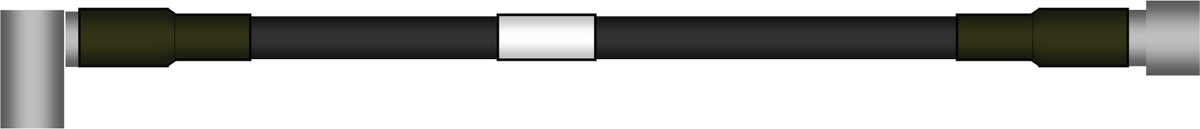

Commscope F4A-PDRDF-4M-X | FSJ4-50B SureFlex Jumper with interface types 7-16 DIN Male Right Angle and 7-16 DIN Female, 4 m
Regular price
$125.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope F4A-PDRDF-4M-X | FSJ4-50B SureFlex Jumper with interface ...
Regular price
$125.93
Unit price
Description
Description
Commscope F4A-PDRDF-4M-X | FSJ4-50B SureFlex Jumper with interface types 7-16 DIN Male Right Angle and 7-16 DIN Female, 4 m
Specifications
Specifications
Jumper Assembly Sample Label
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | SureFlex standard |
|---|---|
| Product Series | FSJ4-50B |
General Specifications
| Attachment, Connector B | Field attachment |
|---|---|
| Body Style, Connector A | Right angle |
| Body Style, Connector B | Straight |
| Interface, Connector A | 7-16 DIN Male |
| Interface, Connector B | 7-16 DIN Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 4 m / 13.123 ft |
|---|---|
| Nominal Size | 1/2 in |
Electrical Specifications
| DTF, Connector A | -32 dB |
|---|
Environmental Specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
