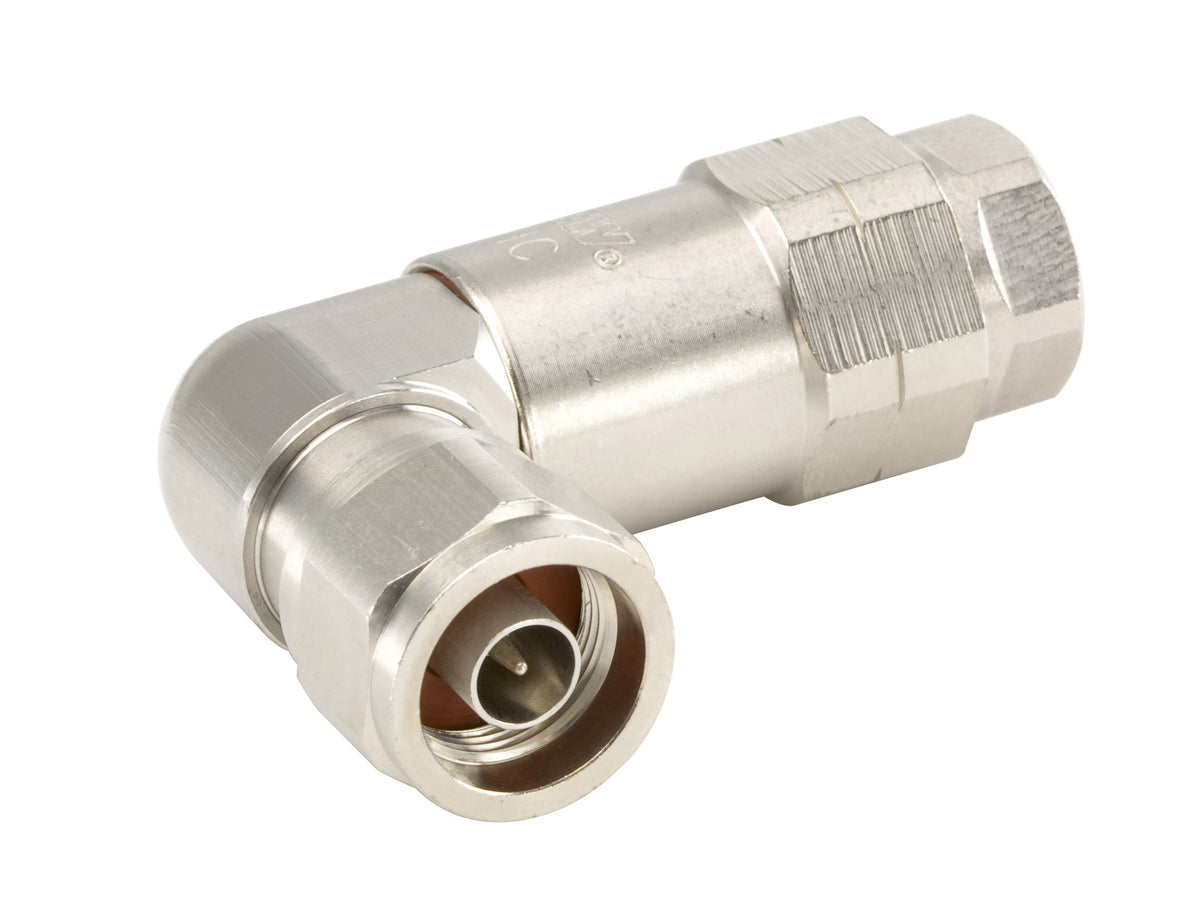

Commscope F4NR-HC | Type N Male Right Angle for 1/2 in FSJ4-50B cable

$47.46
Shipping calculated at checkout.

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Commscope F4NR-HC | Type N Male Right Angle for 1/2 in FSJ4-50B cable

Specifications

Outline Drawing

Click on image to enlarge.

Product Classification

Product TypeWireless and radiating connector
Product BrandHELIAX
Ordering NoteCommScope standard product in Asia Pacific / CommScope standard product in Europe, the Middle East, and Africa

General Specifications

Body StyleRight angle
Cable FamilyFSJ4-50B
Inner Contact Attachment MethodCaptivated
Inner Contact PlatingGold / Silver
InterfaceN Male
Mounting AngleRight angle
Outer Contact Attachment MethodSelf-flare
Outer Contact PlatingTrimetal
PressurizableNo

Dimensions

Height46.48 mm / 1.830 in
Width24.38 mm / 0.960 in
Length63.75 mm / 2.510 in
Right Angle Length22.1 mm / 0.870 in
Nominal Size1/2 in

Electrical Specifications

3rd Order IMD at Frequency-116 dBm/910 MHz
3rd Order IMD Test MethodTwo +43 dBm carriers
Insertion Loss, typical0.05 dB
Average Power at Frequency0.6 kW/900 MHz
Cable Impedance50 ohm
Connector Impedance50 ohm
dc Test Voltage2000 V
Inner Contact Resistance, maximum2 mOhm
Insulation Resistance, minimum5000 mOhm
Operating Frequency Band0 – 10200 MHz
Outer Contact Resistance, maximum0.3 mOhm
Peak Power, maximum10 kW
RF Operating Voltage, maximum (vrms)707 V
Shielding Effectiveness-110 dB

Mechanical Specifications

Connector Retention Tensile Force444.82 N / 100.000 lbf
Connector Retention Torque5.42 N-m / 47.998 in lb
Coupling Nut Proof Torque4.52 N-m / 39.997 in lb
Coupling Nut Retention Force444.82 N / 100.000 lbf
Coupling Nut Retention Force MethodMIL-C-39012C-3.23, 4.6.22
Interface Durability500 cycles
Interface Durability MethodIEC 61169-4:9.5
Mechanical Shock Test MethodMIL-STD-202F, Method 213B, Test Condition C

Environmental Specifications

Operating Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature-55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature20 °C / 68 °F
Average Power, Ambient Temperature40 °C / 104 °F
Corrosion Test MethodMIL-STD-1344A, Method 1001.1, Test Condition A
Immersion Depth1 m
Immersion Test MatingUnmated
Immersion Test MethodIEC 60529:2001, IP68
Moisture Resistance Test MethodMIL-STD-202F, Method 106F
Thermal Shock Test MethodMIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
Vibration Test MethodMIL-STD-202F, Method 204D, Test Condition B
Water Jetting Test MatingUnmated
Water Jetting Test MethodIEC 60529:2001, IP66

Packaging and Weights

Weight, net160.9 g / 0.355 lb

Regulatory Compliance/Certifications

ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
ROHSCompliant/Exempted
CHINA-ROHSAbove maximum concentration value
