Brand: CommScope
|
SKU:
402591

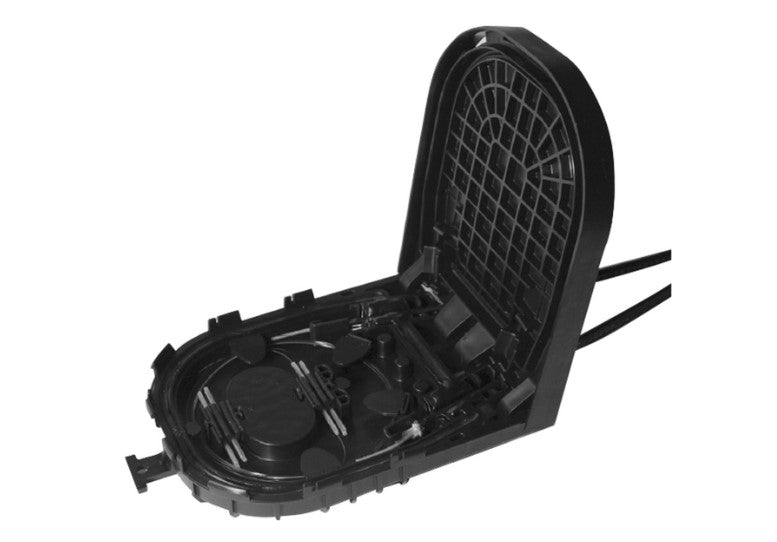

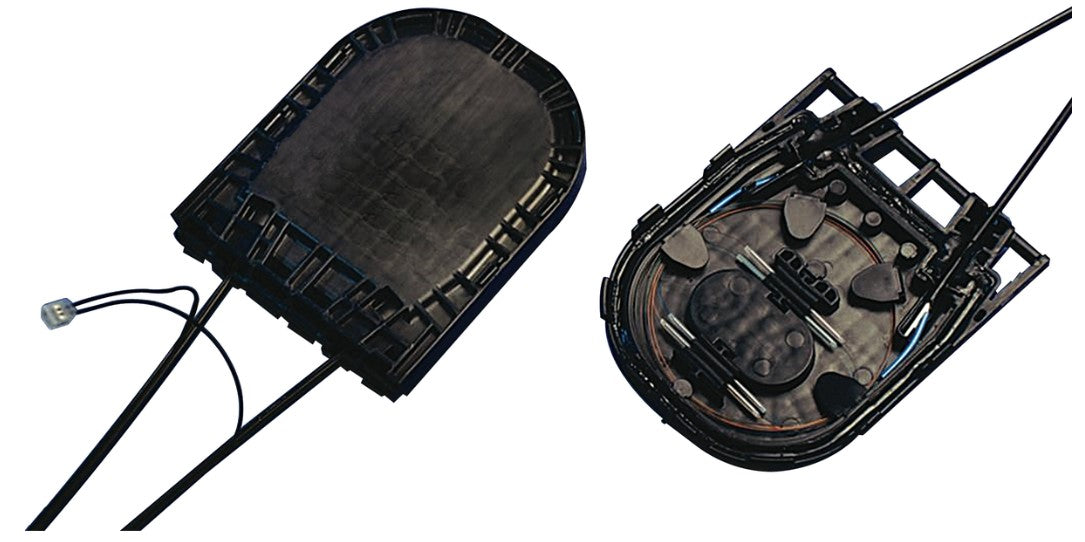

CommScope FDSCGATOR12FT | Gator 12F Fiber Optic Splice Closure, Re-Enterable, Gel Cable Sealing, For Up To 12 Splices
Regular price
$77.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope FDSCGATOR12FT | Gator 12F Fiber Optic Splice Closure, Re-...
Regular price
$77.03
Unit price
Description
Description
CommScope FDSCGATOR12FT | Gator 12F Fiber Optic Splice Closure, Re-Enterable, Gel Cable Sealing, For Up To 12 Splices
Specifications
- Designed for splicing two loose tube “flat drop” style cables of 1 to 12 fibers in above grade, below grade, and direct buried applications
- Uses gel sealing technology to create a sealed closure system that will fit into confined areas such as small “flowerpot” style handholes
- Incorporates our unique cable hold down and strength member termination features and is capable of holding either fusion or mechanical splices
- Tone wires can also be terminated outside of the closure using the included hardware
Specifications
Specifications
CommScope - FDSCGATOR12FT - Specifications
- Designed for splicing two loose tube “flat drop” style cables of 1 to 12 fibers in above grade, below grade, and direct buried applications
- Uses gel sealing technology to create a sealed closure system that will fit into confined areas such as small “flowerpot” style handholes
- Incorporates our unique cable hold down and strength member termination features and is capable of holding either fusion or mechanical splices
- Tone wires can also be terminated outside of the closure using the included hardware
CommScope - FDSCGATOR12FT - Specifications
| Product Type | Single-ended, flat fiber closure |
|---|---|
| Product Series | FDSC GATOR |
| Government Requirements | Build America Buy America (BABA) coming soon* |
| Cable Entry Drop Port Style | Flat |
| Cable Entry Main Port Style | Flat |
| Cable Ports Quantity, total | 2 round ports |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Hinged with latch |
| Closure Style | Single-ended |
| Color | Black |
| Mounting | Wall |
| Network Area Type | Drop |
| Splicing Capacity, Mass Fusion, maximum | 12 |
| Splicing Capacity, Single Fusion, maximum | 12 |
| Splicing Type, Supported | Mass fusion | Single fusion |
| Height | 30.48 mm | 1.2 in |
| Width | 147.32 mm | 5.8 in |
| Length | 190.5 mm | 7.5 in |
| Packaging Type | Box | Carton |
