Brand: CommScope
|
SKU:
703045

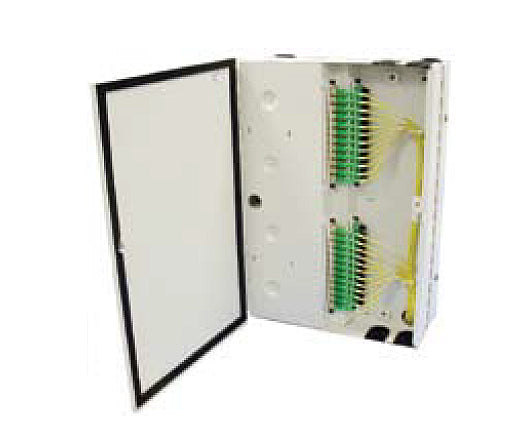

Commscope FDT-CJ048NXV8000 | iFDT Indoor Fiber Distribution Terminal, 48-fiber, SC/APC, loose tube IFC cable, 8000 feet
Regular price
$4,644.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FDT-CJ048NXV8000 | iFDT Indoor Fiber Distribution Termina...
Regular price
$4,644.93
Unit price
Description
Description
Commscope FDT-CJ048NXV8000 | iFDT Indoor Fiber Distribution Terminal, 48-fiber, SC/APC, loose tube IFC cable, 8000 feet
Features and Benefits
- Compact and secure family of enclosures by connecting fiber cables at MDUs
- Integrated splice trays offer flexible splice management for individual or mass splicing
- Dual-hinged design ensures separation of owner/client network segments
- Robust steel construction protects fibers against damage and ensures network reliability
- Slotted cable entrance ports allow for rapid cable installation and pass-through capability
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Product Type | Fiber distribution terminal |
| Product Series | IFDT |
General Specifications
| Adapters, quantity | 48 |
|---|---|
| Cable Entry Location | Bottom right / Top right |
| Cable Type | IFC - Stranded |
| Color | Putty white |
| Front Door Type | Double hinged |
| Growth Configuration | Fully loaded |
| Interface, Input | SC |
| Interface Feature, Input | APC |
| Interface, stub | No connector |
| Lock Type | Padlock ready |
| Mounting | Wall |
| Port, quantity | 48 |
Dimensions
| Height | 476.25 mm / 18.75 in |
|---|---|
| Width | 368.3 mm / 14.5 in |
| Depth | 127 mm / 5 in |
| Cable Length | 2438.4 m / 8000 ft |
Material Specifications
| Finish | Powder coated |
|---|---|
| Material Type | Steel |
Optical Specifications
| Fiber Mode | Singlemode |
|---|
Environmental Specifications
| Environmental Space | Indoor |
|---|---|
| Qualification Standards | NEMA, Type 12 / Telcordia GR-2898-CORE |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- ADCP-96-808 iFDT 24/48-Port Indoor Fiber Distribution Terminal
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- FDT-CJ048NXV8000 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Visio Stencil Resources
- CommScope Limited Product Warranty
