Brand: CommScope
|
SKU:
10227239

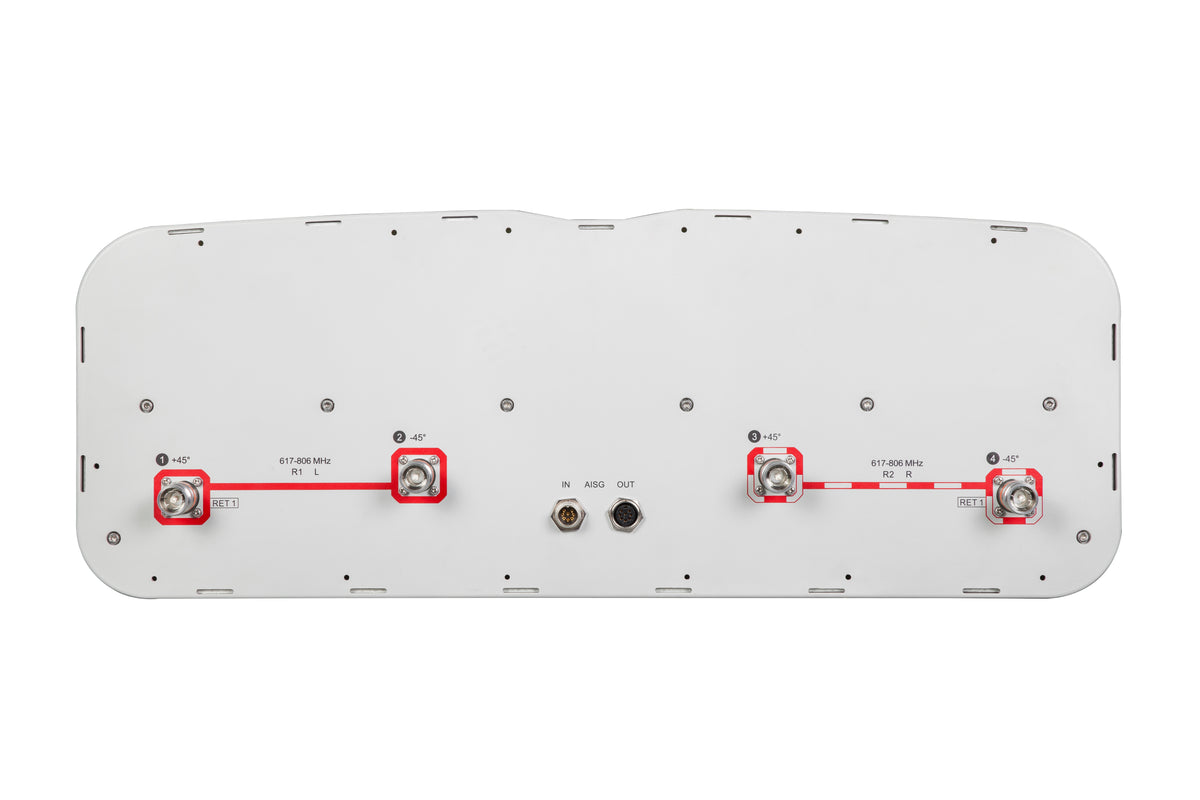

CommScope FF-65B-R1 | 4-port sector antenna, 4x 617–806 MHz, 65° HPBW, 1x RET, 600MHz-Ready Antenna Technology
Regular price
$3,397.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope FF-65B-R1 | 4-port sector antenna, 4x 617–806 MHz, 65° HP...
Regular price
$3,397.17
Unit price
Brand: CommScope
|
SKU:
10227239
Regular price
$3,397.17
Unit price
Shipping calculated at checkout.
Description
Description
CommScope FF-65B-R1 | 4-port sector antenna, 4x 617–806 MHz, 65° HPBW, 1x RET, 600MHz-Ready Antenna Technology
Specifications
Specifications
CommScope - FF-65B-R1 - Product Categories
- Antennas
- Base Station Antennas & Equipment
- Base Station Antennas
CommScope - FF-65B-R1 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | 4-port sector antenna, 4x 617–806 MHz, 65° HPBW, 1x RET, 600MHz-Ready Antenna Technology |
| Model Number | FF-65B-R1 |
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
CommScope - FF-65B-R1 - Additional Information
| Remote Electrical Tilt (RET) Information | - |
|---|---|
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
| Dimensions | - |
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1830 mm | 72.047 in |
| Net Weight, without mounting kit | 39.5 kg | 87.082 lb |
| Electrical Specifications | - |
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 806 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
| Electrical Specifications | - |
| Frequency Band, MHz | 617–698 |
| Gain, dBi | 14.1 |
| Beamwidth, Vertical, degrees | 14.8 |
| Beamwidth, Horizontal, degrees | 66 |
| Beam Tilt, degrees | 2–14 |
