Commscope FGS-HDCB-C | FiberGuide Digital Cableway Support Kit, 2x2in
Regular price
$35.67
Unit price
Brand: CommScope
|
SKU:
498039
Regular price
$35.67
Unit price
Description
Description

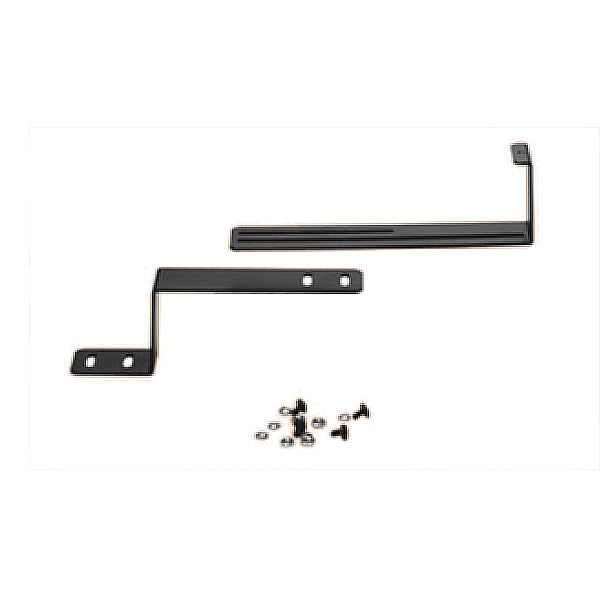

Commscope FGS-HDCB-C | FiberGuide Digital Cableway Support Kit, 2x2in
Features and Benefits
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber raceway support mounting kit |
| Product Brand | FiberGuide |
| Product Series | FGS |
General Specifications
| Color | Black |
|---|---|
| Orientation | Horizontal |
| Section Type | Bracket |
Dimensions
| Height | 115 mm / 4.528 in |
|---|---|
| Width | 38 mm / 1.496 in |
| Length | 230 mm / 9.055 in |
| System Dimensions | 51 mm x 51 mm (2 in x 2 in) |
Packaging and Weights
| Weight, net | 0.834 kg / 1.839 lb |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
