Commscope FGS-MD4E-A | FiberGuide 45° Down Elbow, 4x4in, Yellow
Regular price
$109.47
Unit price
Brand: CommScope
|
SKU:
205737
Regular price
$109.47
Unit price
Description
Description

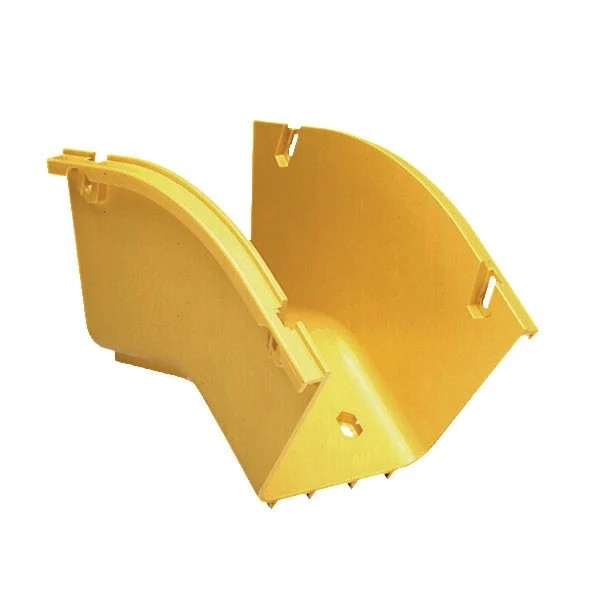

Commscope FGS-MD4E-A | FiberGuide 45° Down Elbow, 4x4in, Yellow
Features and Benefits
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber raceway elbow section |
| Product Brand | FiberGuide |
| Product Series | FGS |
General Specifications
| Angle/Bend Direction | 45° down |
|---|---|
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Elbow section |
Dimensions
| System Dimensions | 102 mm x 102 mm (4 in x 4 in) |
|---|
Material Specifications
| Material Type | Engineering Thermoplastic |
|---|
Environmental Specifications
| Flammability Rating | CSA S143 / UL 2024 / UL 94 V-0 |
|---|---|
| Halogen Characteristics | Blue Angel / TCO '99 / WEEE |
| Safety Standard | CSA / UL |
Packaging and Weights
| Weight, net | 0.266 kg / 0.586 lb |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
