Brand: CommScope
|
SKU:
417286
Commscope FGS-MEXP-LP-G | FiberGuide 2-Inch Low-Profile Express Exit, 2x6in, Yellow
Regular price
$198.44
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FGS-MEXP-LP-G | FiberGuide 2-Inch Low-Profile Express Exi...
Regular price
$198.44
Unit price
Brand: CommScope
|
SKU:
417286
Regular price
$198.44
Unit price
Description
Description

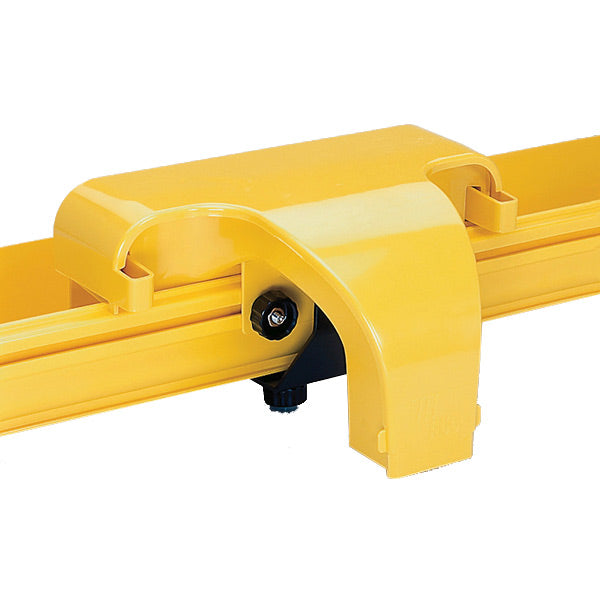

Commscope FGS-MEXP-LP-G | FiberGuide 2-Inch Low-Profile Express Exit, 2x6in, Yellow
Features and Benefits
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber raceway drop kit |
| Product Brand | FiberGuide |
| Product Series | FGS |
General Specifications
| Color | Yellow |
|---|---|
| Orientation | Horizontal |
| Section Type | Downspout |
Dimensions
| Height | 132 mm / 5.197 in |
|---|---|
| Width | 260 mm / 10.236 in |
| System Dimensions | 51 mm x 152 mm (2 in x 6 in) |
Material Specifications
| Material Type | Engineering Thermoplastic |
|---|
Environmental Specifications
| Flammability Rating | CSA S143 / UL 2024 / UL 94 V-0 |
|---|---|
| Halogen Characteristics | Blue Angel / TCO '99 / WEEE |
| Safety Standard | CSA / UL |
Packaging and Weights
| Weight, net | 1.74 kg / 3.836 lb |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 201646BE FiberGuide Trough Densities
- Revit BIM Models
- 1174568 FiberGuide Cable Management, 2x6 Covered Express Exit
- 201645be FiberGuide Material
- Statement of Compliance RoHS/REACH
- FiberGuide Fiber Management Systems
- FGS-MEXP-LP-G Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
