Commscope FGS-MSHS-A | FiberGuide Horizontal Straight Section, 4x4i...
Regular price
$148.83
Unit price
Brand: CommScope
|
SKU:
205762
Regular price
$148.83
Unit price
Description
Description

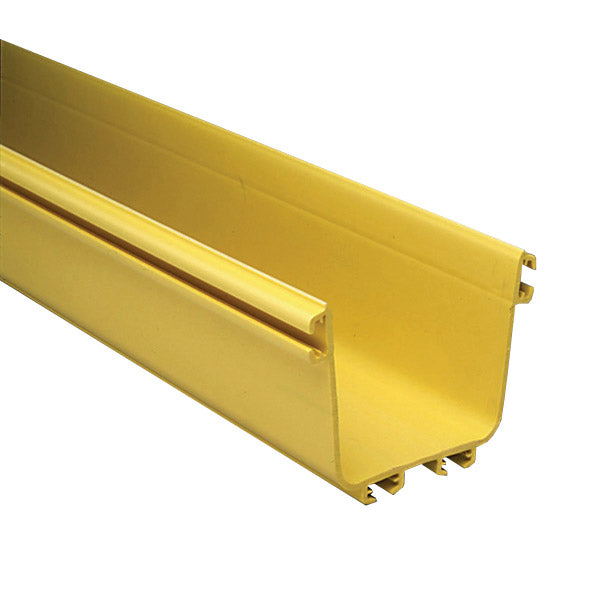

Commscope FGS-MSHS-A | FiberGuide Horizontal Straight Section, 4x4in, Yellow
Features and Benefits
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber raceway straight section |
| Product Brand | FiberGuide |
| Product Series | FGS |
General Specifications
| Product Feature | Snap-together design |
|---|---|
| Color | Yellow |
| Orientation | Horizontal |
| Section Type | Straight Section |
Dimensions
| Height | 101.6 mm / 4 in |
|---|---|
| Width | 101.6 mm / 4 in |
| Length | 1829 mm / 72.008 in |
| System Dimensions | 102 mm x 102 mm (4 in x 4 in) |
Material Specifications
| Material Type | Engineering Thermoplastic |
|---|
Environmental Specifications
| Flammability Rating | CSA S143 / UL 2024 / UL 94 V-0 |
|---|---|
| Halogen Characteristics | Blue Angel / TCO '99 / WEEE |
| Safety Standard | CSA / UL |
Packaging and Weights
| Weight, net | 2.7 kg / 5.952 lb |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 201646BE FiberGuide Trough Densities
- Revit BIM Models
- A17005054 FGS(B)-MSHS-A 4x4 inch straight section
- 201645be FiberGuide Material
- Statement of Compliance RoHS/REACH
- FiberGuide Fiber Management Systems
- FGS-MSHS-A Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
