Brand: CommScope
|
SKU:
10059822

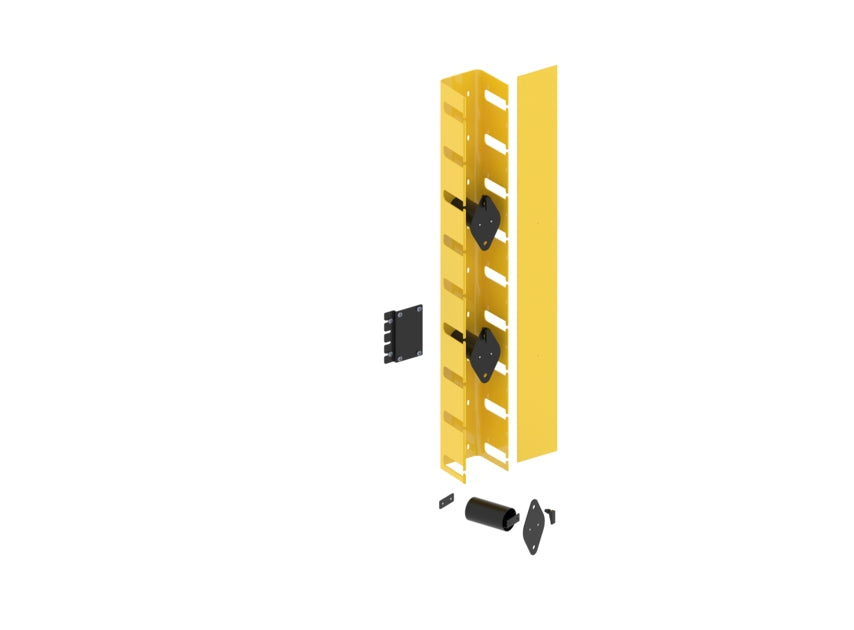

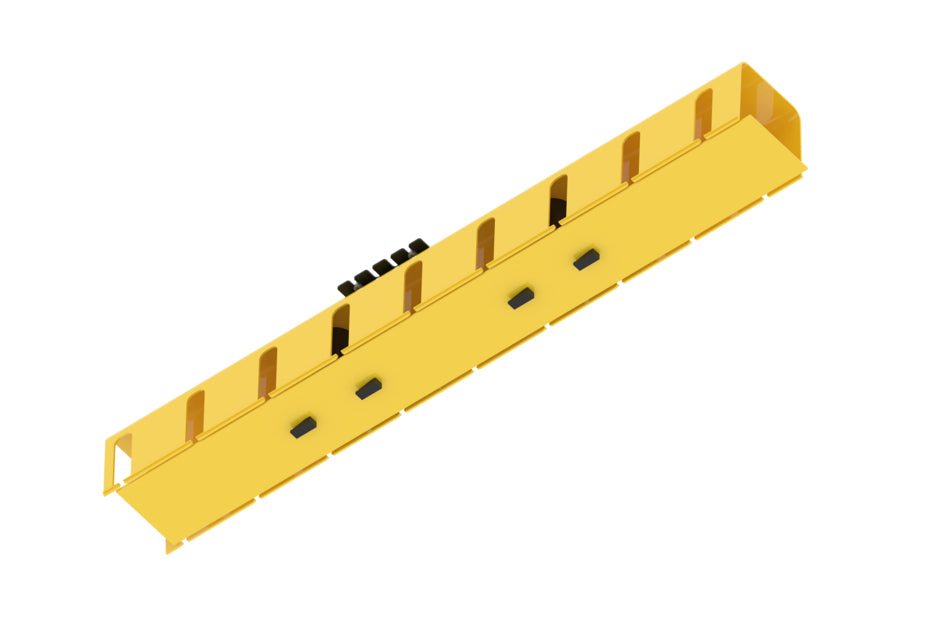

Commscope FGSKTW2DIMPB | FiberGuide Vertical Duct Kit with 3in Slot Spacing, Spools and Split See-Through Cover, 4x4in, Yellow
Regular price
$696.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FGSKTW2DIMPB | FiberGuide Vertical Duct Kit with 3in Slot...
Regular price
$696.15
Unit price
Description
Description
Commscope FGSKTW2DIMPB | FiberGuide Vertical Duct Kit with 3in Slot Spacing, Spools and Split See-Through Cover, 4x4in, Yellow
Features and Benefits
- FiberGuide products are designed and manufactured to ensure total off-frame fiber cable protection
- FiberGuide maintains a minimum bend radius throughout the entire system, regardless the system size
- FiberGuide is an optical raceway system for central office, mobile switching center and data center applications
- Engineers and installers can benefit from the large suite of available FiberGuide design tools
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber raceway slotted channel with snap-on cover |
| Product Brand | FiberGuide |
| Product Series | FGS |
General Specifications
| Product Feature | Slotted |
|---|---|
| Color | Yellow |
| Orientation | Vertical |
| Section Type | Vertical section |
Dimensions
| Height | 115 mm / 4.528 in |
|---|---|
| Width | 120 mm / 4.724 in |
| Length | 1829 mm / 72.008 in |
| System Dimensions | 102 mm x 102 mm (4 in x 4 in) |
Material Specifications
| Material Type | Engineering Thermoplastic |
|---|
Environmental Specifications
| Flammability Rating | CSA S143 / UL 2024 / UL 94 V-0 |
|---|---|
| Halogen Characteristics | Blue Angel / TCO '99 / WEEE |
| Safety Standard | CSA / UL |
Packaging and Weights
| Weight, net | 6.643 kg / 14.645 lb |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
