Brand: CommScope
|
SKU:
664671

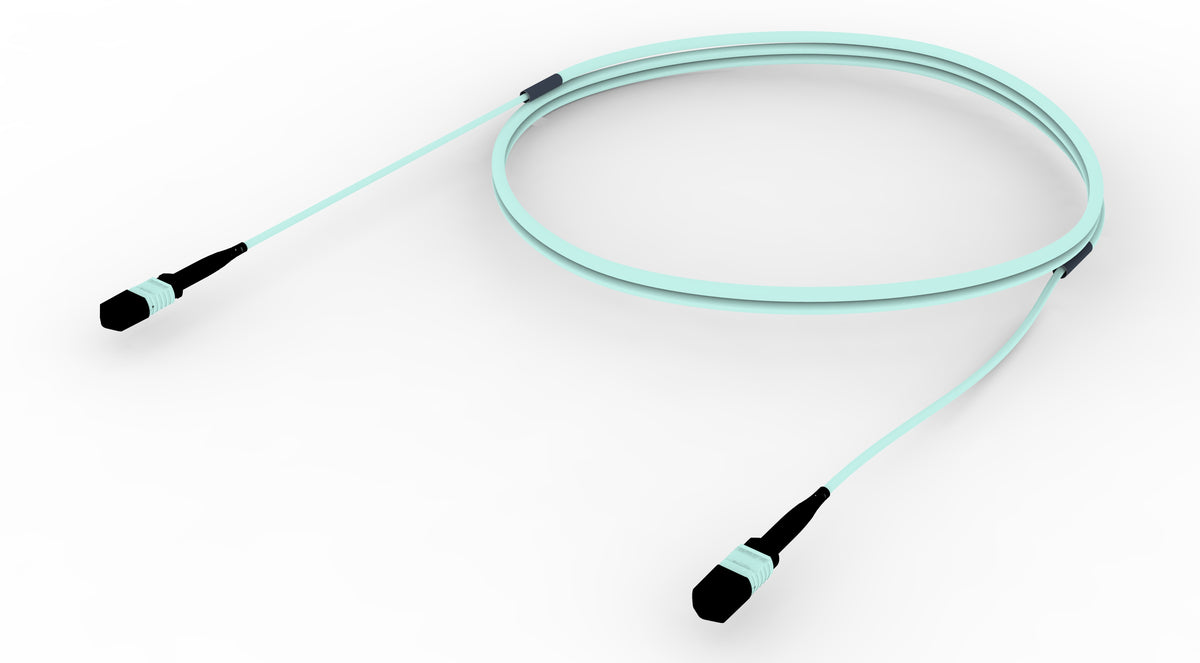

Commscope FGXMPMPAD-HBF040 | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Cord Length - 40 Ft
Regular price
$465.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FGXMPMPAD-HBF040 | 33 inch breakout (end A/end B), with g...
Regular price
$465.36
Unit price
Description
Description
Commscope FGXMPMPAD-HBF040 | OM4 MPO (Female) to MPO (Female), InstaPATCH 360 Pre-terminated Trunk Cable, 12-Fiber, Plenum | 33 inch breakout (end A/end B), with gland, no pulling grip [standard option] | Cord Length - 40 Ft
Specifications
Specifications
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Asia / Australia/New Zealand / Europe / Latin America / Middle East/Africa / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber trunk cable assembly |
| Product Brand | SYSTIMAX InstaPATCH 360 |
| Ordering Note | For lengths greater than 999 ft (304 m), orders must be in meters / Minimum length may vary based on cable configuration |
General Specifications
| Color, boot A | Black |
|---|---|
| Color, boot B | Black |
| Color, connector A | Aqua |
| Color, connector B | Aqua |
| Construction Type | Stranded |
| Fibers per Subunit, quantity | 12 |
| Furcation Color | Aqua |
| Interface, Connector A | MPO-12/UPC |
| Interface, Connector B | MPO-12/UPC |
| Jacket Color | Aqua |
| Total Fibers, quantity | 12 |
Dimensions
| Breakout Length | 33 in |
|---|---|
| Cable Assembly Length Range (m) | 3 – 305 |
| Cable Assembly Length Range (ft) | 10 – 999 |
Mechanical Specifications
| Cable Retention Strength, maximum | 11.24 lb @ 0 ° / 4.40 lb @ 90 ° |
|---|
Optical Specifications
| Fiber Mode | Multimode |
|---|---|
| Fiber Type | OM4, LazrSPEED |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Environmental Space | Plenum |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
