CommScope FHD-HJ1C-500F | Fiber Optic Drop Cable Assembly, hardened...
Regular price
$262.68
Unit price
Description
Description

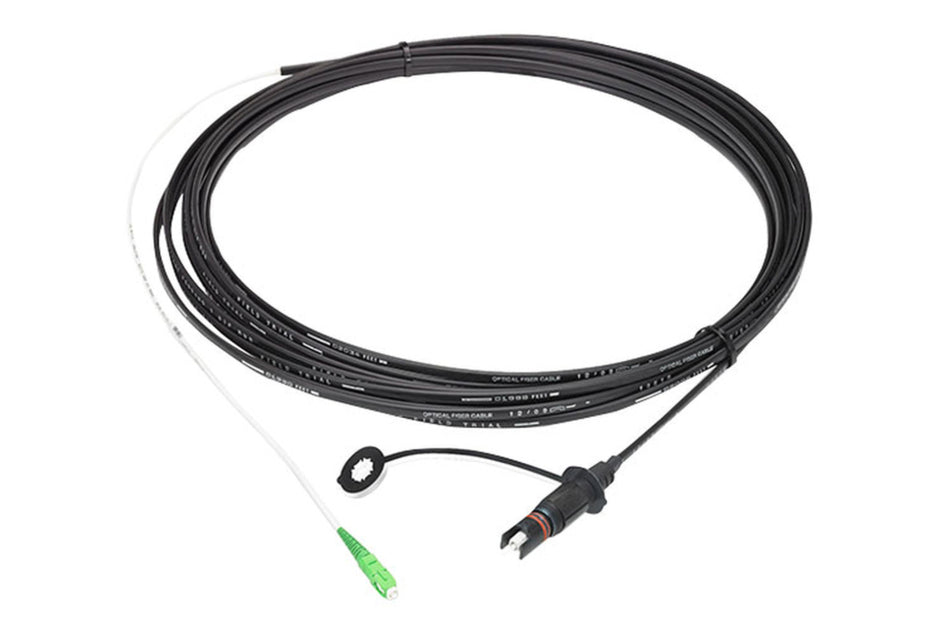

CommScope FHD-HJ1C-500F | Fiber Optic Drop Cable Assembly, hardened full-size to SC/APC, universal flat dielectric
CommScope - FHD-HJ1C-500F - Features
- Hardened connectors are factory-terminated and environmentally sealed for use in optical drop Cable deployments
- Hardened drop Cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
- Hardened drop Cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network
- Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.
Specifications
Specifications
CommScope - FHD-HJ1C-500F - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Europe | Latin America | North America |
|---|---|
| Product Type | Fiber drop Cable assembly |
| Product Series | FHD |
| Government Requirements | Build America Buy America (BABA) compliant* |
| Ordering Note | Drops are automatically coiled 0 to 1, 000 ft (305 m), unless spool option "L" or "R" is specified for this range of length | Drops are automatically spooled at 1, 001 ft (306 m) with connector B deploying first from spool |
| Cable Type | Dielectric - Universal Flat |
| Connector A, quantity | 1 |
| Color, boot A | Black |
| Color, connector A | Black |
| Connector B, quantity | 1 |
| Color, boot B | Green |
| Color, connector B | Green |
| Interface, Connector A | Hardened full-size SC/APC |
| Interface, Connector B | SC/APC with pulling sock |
| Jacket Color | Black |
| Location of Manufacturing | Catawba, North Carolina |
| Breakout Length, connector B | 457.200 mm | 18 in |
| Cable Assembly Length Range (m) | 1 – 900 |
| Cable Assembly Length Range (ft) | 50 – 2000 |
| Cable Outer Diameter | 4.6 x 8.0 mm (0.18 x 0.31 in) |
| Click on image to enlarge. | Close Modal |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2, TeraSPEED® |
| Insertion Loss, maximum, connector A | 0.4 dB |
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable weight | 34.4 kg/km | 23.116 lb/kft |
| Packaging quantity | 1 |
| ROHS, CHINA-ROHS, REACH-SVHC, UK-ROHS | Compliant/Exempted, Above maximum concentration value, Compliant as per SVHC revision on www.commscope.com/ProductCompliance, Compliant/Exempted |
