Brand: CommScope
|
SKU:
391424

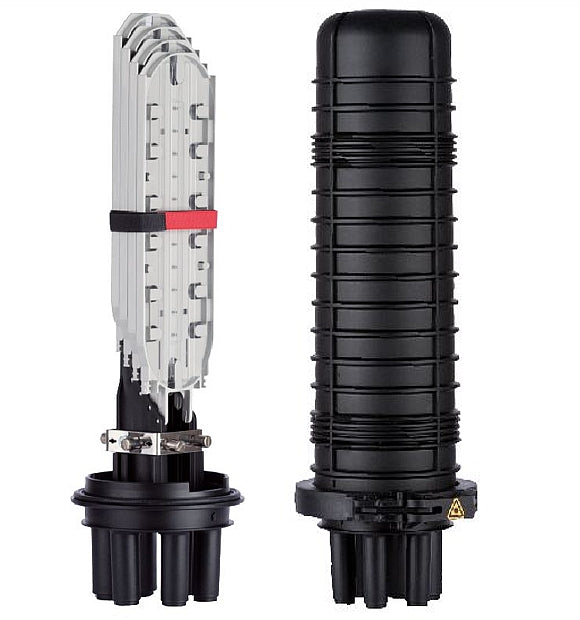

Commscope FOSC400B4241BNV | FOSC 400 B4 Fiber Optic Splice Closure, Heat Shrink Cable sealing, one pre-installed 24-splice tray, cable blocking, with test valve
Regular price
$332.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FOSC400B4241BNV | FOSC 400 B4 Fiber Optic Splice Closure,...
Regular price
$332.35
Unit price
Description
Description
Commscope FOSC400B4241BNV | FOSC 400 B4 Fiber Optic Splice Closure, Heat Shrink Cable sealing, one pre-installed 24-splice tray, cable blocking, with test valve
Features and Benefits
- Single-ended, O-ring sealed dome closure for splicing feeder and distribution cables
- Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
- FOSC splice trays hinged for access to any splice without disturbing other trays
- Closure can be used in aerial, pedestal and underground (up to 5 meters) environments
- Compatible with CommScope's CWDM modules and optical splitter trays
Specifications
Specifications
Dimension Drawing
| Click on image to enlarge. |
|---|
Ordering Tree
| Click on image to enlarge. |
|---|
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Product Type | Single-ended, round fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC 400 |
General Specifications
| Cable Entry Drop Port Style | Round |
|---|---|
| Cable Entry Main Port Style | Oval |
| Cable Ports, quantity | 5 |
| Cable Sealing Type | Heat shrink |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Mounting | Pole / Strand / Wall |
| Network Area Type | Feeder |
| Splice Tray Included, quantity | 1 |
| Splice Tray Type Included | 24-way, heat shrink |
| Splicing Capacity, Mass Fusion, maximum | 144 |
| Splicing Capacity, Single Fusion, maximum | 96 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 96 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 48 |
| Splicing Type, Supported | Single fusion |
Dimensions
| Length | 540 mm / 21.26 in |
|---|---|
| Diameter | 150 mm / 5.906 in |
| Diameter, with clamp | 180 mm / 7.087 in |
| Main Cable Diameter, maximum | 25 mm / 0.984 in |
Material Specifications
| Material Type | Impact-resistant polymer |
|---|
Environmental Specifications
| Environmental Space | Below ground / Buried |
|---|---|
| Qualification Standards | IEC 61300, 6 m waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
Packaging and Weights
| Included | Cable blocking components |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Box / Carton |
| Weight, net | 2.5 kg / 5.512 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
