Brand: CommScope
|
SKU:
495474

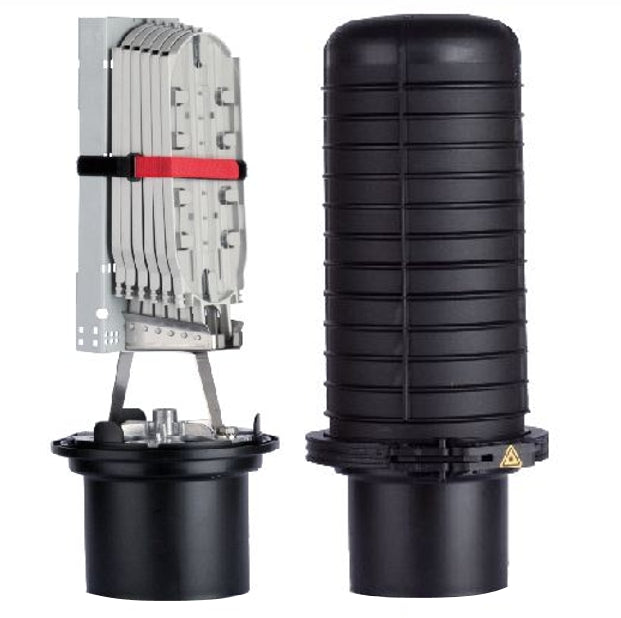

Commscope FOSC450-BS-4-NT-0-N0V | FOSC 450 BS Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed trays, 4 cable attach., with test valve
Regular price
$270.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FOSC450-BS-4-NT-0-N0V | FOSC 450 BS Fiber Optic Splice Cl...
Regular price
$270.66
Unit price
Description
Description
Commscope FOSC450-BS-4-NT-0-N0V | FOSC 450 BS Fiber Optic Splice Closure, Gel Cable sealing, no pre-installed trays, 4 cable attach., with test valve
Features and Benefits
- Single-ended, O-ring sealed dome closure for splicing feeder and distribution cables
- Gel cable sealing technology allows easy adding or removing of a wide size range of cables
- Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
- FOSC splice trays hinged for access to any splice without disturbing other trays
- Closure can be used in aerial, pedestal and underground (up to 5 meters) environments
- Compatible with CommScope's CWDM modules and optical splitter trays
Specifications
Specifications
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Product Type | Single-ended, round fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC 450 |
General Specifications
| Cable Entry Drop Port Style | Round |
|---|---|
| Cable Entry Main Port Style | Round |
| Cable Ports, quantity | 6 |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Mounting | Pole / Strand / Wall |
| Network Area Type | Feeder |
| Splice Tray Included, quantity | 0 |
| Splicing Capacity, Mass Fusion, maximum | 144 |
| Splicing Capacity, Single Fusion, maximum | 144 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 144 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 72 |
| Splicing Type, Supported | Mass fusion / Single fusion |
Dimensions
| Length | 490 mm / 19.291 in |
|---|---|
| Diameter | 180 mm / 7.087 in |
| Diameter, with clamp | 232 mm / 9.134 in |
| Main Cable Diameter, maximum | 25 mm / 0.984 in |
Material Specifications
| Material Type | Impact-resistant polymer |
|---|
Environmental Specifications
| Environmental Space | Below ground / Buried |
|---|---|
| Qualification Standards | IEC 61300, 5 m waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Packaging Type | Box / Carton |
| Weight, net | 4.54 kg / 10.009 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
