Brand: CommScope
|
SKU:
931420

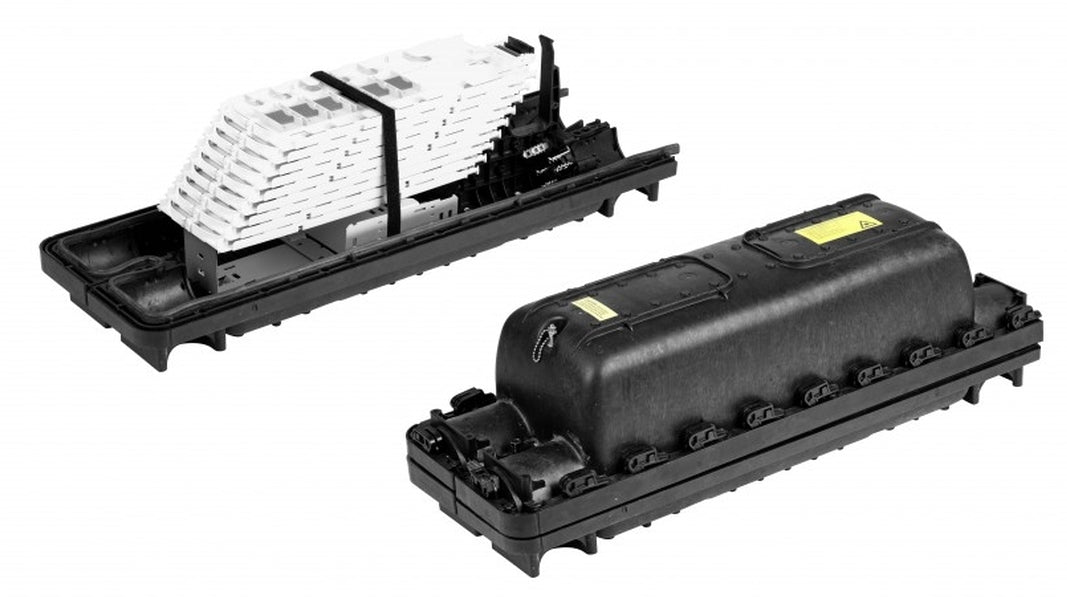

Commscope FOSC600-C8I-NT-0-C4V | FOSC 600 C Fiber Optic Splice Closure, Gel Cable sealing, inline type, no pre-installed trays, two 4-port gel blocks, standard basket, 4 ground feedthru lugs, with test valve
Regular price
$792.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FOSC600-C8I-NT-0-C4V | FOSC 600 C Fiber Optic Splice Clos...
Regular price
$792.79
Unit price
Description
Description
Commscope FOSC600-C8I-NT-0-C4V | FOSC 600 C Fiber Optic Splice Closure, Gel Cable sealing, inline type, no pre-installed trays, two 4-port gel blocks, standard basket, 4 ground feedthru lugs, with test valve
Features and Benefits
- Single-ended or in-line, gel-sealed closure for splicing feeder and distribution cables
- Excellent consolidation or rehabilitation closure with large fiber splicing capacity
- Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
- FOSC splice trays hinged for access to any splice without disturbing other trays
- Closure can be used in aerial, pedestal and underground (up to 5 meters) environments
- Compatible with CommScope's CWDM modules and optical splitter trays
Specifications
Specifications
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| Product Type | In-line, rectangular fiber closure / Single-ended, rectangular fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC 600 |
General Specifications
| Cable Entry Drop Port Style | Gel block |
|---|---|
| Cable Entry Main Port Style | Gel block |
| Cable Ports, quantity | 8 |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Captured bolts / Over-centered latches with rubber gasket |
| Closure Style | In-line / Single-ended |
| Color | Black |
| Fiber Storage Basket Type | C6 standard size |
| Ground Feed-through Lugs, quantity | 4 |
| Mounting | Pole / Strand / Wall |
| Network Area Type | Feeder / Trunk |
| Splice Tray Included, quantity | 0 |
| Splicing Capacity, Mass Fusion, maximum | 864 |
| Splicing Capacity, Single Fusion, maximum | 480 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 480 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 180 |
| Splicing Type, Supported | Mass fusion / Single fusion |
Dimensions
| Height | 152 mm / 5.984 in |
|---|---|
| Width | 274 mm / 10.787 in |
| Length | 828 mm / 32.598 in |
| Main Cable Diameter, maximum | 35 mm / 1.378 in |
Material Specifications
| Material Type | Rugged polymer |
|---|
Environmental Specifications
| Environmental Space | Below ground / Buried |
|---|---|
| Qualification Standards | Telcordia GR-771-CORE, 20 ft waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
Packaging and Weights
| Included | Cable blocking components |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Box / Carton |
| Weight, net | 11.79 kg / 25.992 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
