Brand: CommScope
|
SKU:
879344

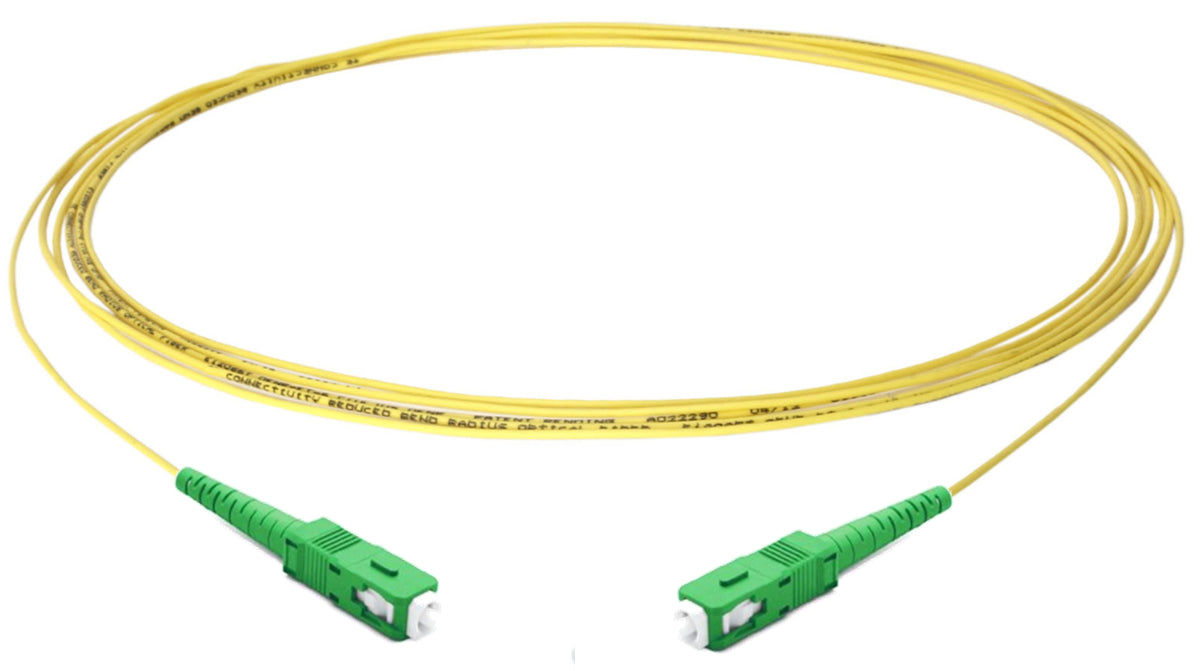

Commscope FPCA-EEYP010M | Fiber Optic Patch Cord, singlemode, 1.2 mm OFNP jacket, SC/APC-SC/APC, yellow | Cord Length - 10 M
Regular price
$23.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FPCA-EEYP010M | Fiber Optic Patch Cord, singlemode, 1.2 m...
Regular price
$23.03
Unit price
Description
Description
Commscope FPCA-EEYP010M | Fiber Optic Patch Cord, singlemode, 1.2 mm OFNP jacket, SC/APC-SC/APC, yellow | Cord Length - 10 M
Features and Benefits
- 1.2 mm diameter cable provides a 65% space savings over commonly used 2.0 mm cable
- 1.2 mm diameter fiber patch cords use Reduced Bend Radius (RBR) fiber cable
- Typically used in environments where space constraints and cable routing prove most challenging
Specifications
Specifications
Product Classification
| Regional Availability | Latin America / North America |
|---|---|
| UNSPSC | 26121650 |
| Product Type | Fiber patch cord, simplex |
| Product Series | FPCA |
General Specifications
| Color, boot A | Green |
|---|---|
| Color, boot B | Green |
| Color, connector A | Green |
| Color, connector B | Green |
| Connector A, quantity | 1 |
| Connector B, quantity | 1 |
| Interface, Connector A | SC/APC |
| Interface, Connector B | SC/APC |
| Jacket Color | Yellow |
| Total Fibers, quantity | 1 |
| Transmission Standards | TIA/EIA-604 FOCIS-3 |
Dimensions
| Diameter Over Jacket | 1.2 mm / 0.047 in |
|---|
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | G.657.A2/B2 |
| Insertion Loss, maximum, connector A | 0.35 dB |
| Insertion Loss, maximum, connector B | 0.35 dB |
| Return Loss, minimum, connector A | 65 dB |
| Return Loss, minimum, connector B | 65 dB |
Environmental Specifications
| Environmental Space | Plenum |
|---|---|
| Qualification Standards | GR-326 CORE / GR-409 / GR-449-CORE |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
