Brand: CommScope
|
SKU:
386272

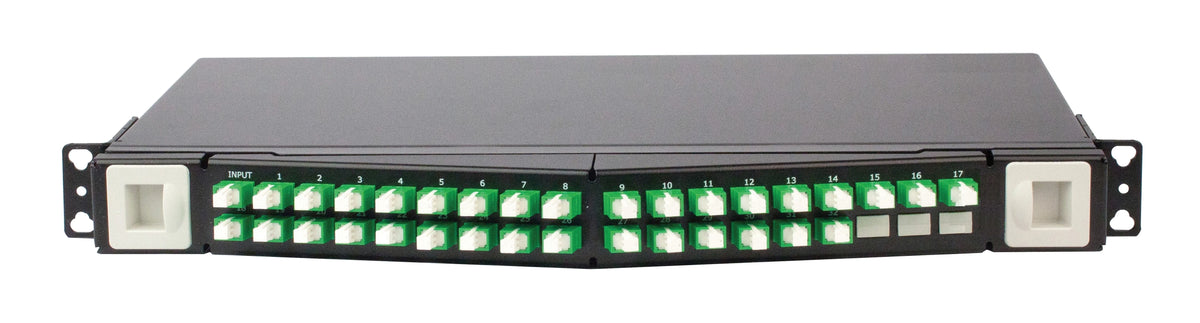

Commscope FPS-FMTSP-AJJ01 | FMT Fiber Optic Splitter Patch Panel, 1U, 19 in, 1x32 splitter, SC/APC splitter and output connect., 1 splitter
Regular price
$3,317.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FPS-FMTSP-AJJ01 | FMT Fiber Optic Splitter Patch Panel, 1...
Regular price
$3,317.13
Unit price
Description
Description
Commscope FPS-FMTSP-AJJ01 | FMT Fiber Optic Splitter Patch Panel, 1U, 19 in, 1x32 splitter, SC/APC splitter and output connect., 1 splitter
Specifications
Specifications
Product Classification
| Regional Availability | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Splitter patch panel |
| Product Series | FMT |
General Specifications
| Device Type | Patch panel |
|---|---|
| Functionality | Splitting |
| Access | Front |
| Circuits, quantity | 1 |
| Distribution Type | 1 x 32 splitter |
| Interface, Input | SC |
| Interface Feature, Input | APC |
| Interface, Output | SC |
| Interface Feature, Output | APC |
| Module Color | Putty white |
| Port, quantity | 33 |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
Dimensions
| Height | 71.88 mm / 2.83 in |
|---|---|
| Width | 17.27 mm / 0.68 in |
| Depth | 177.8 mm / 7 in |
Optical Specifications
| Directivity, minimum | 60 dB |
|---|---|
| Polarization Dependent Loss, maximum | 0.3 dB |
| Uniformity, maximum | 1.5 dB |
| Wavelength Range | 1260–1635 nm |
| Insertion Loss, Splitter, maximum | 16.7 dB |
| Insertion Loss, Splitter, typical | 16.5 dB |
| Return Loss, Splitter, minimum | 55 dB |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
