Brand: CommScope
|
SKU:
10162351

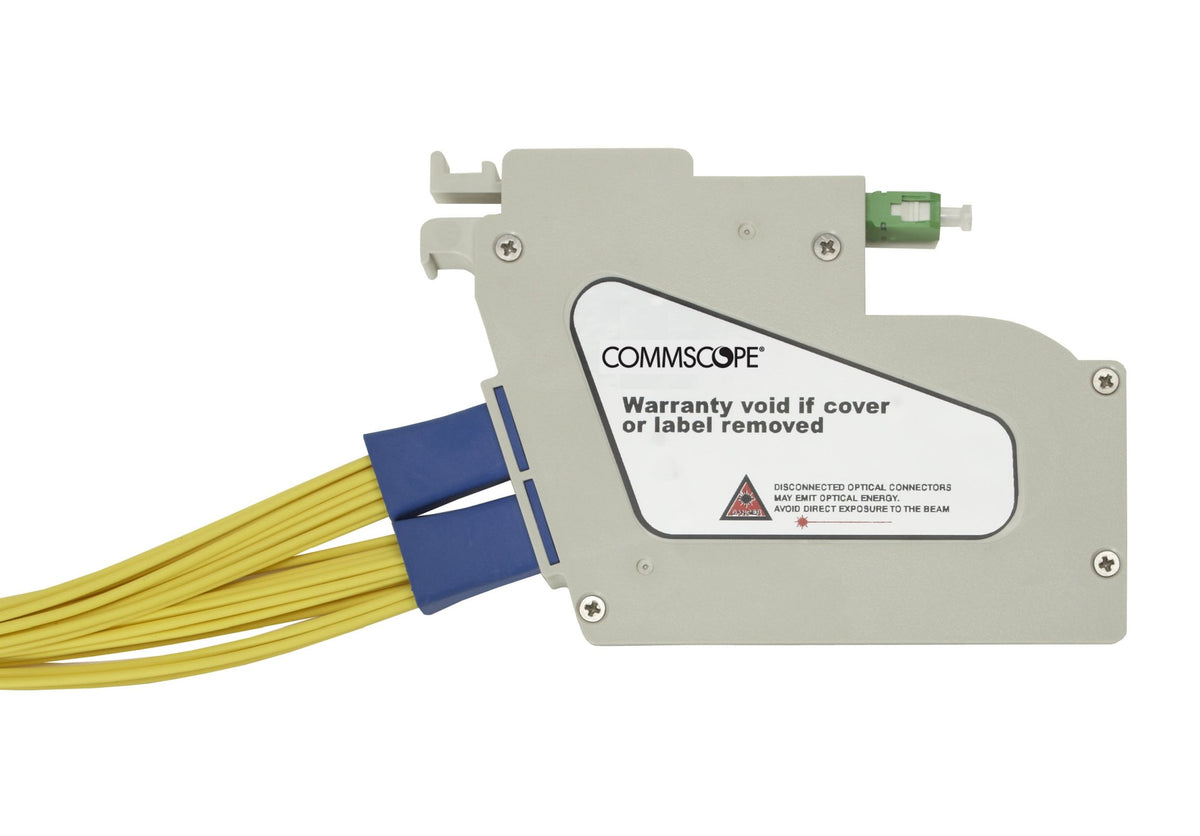

Commscope FPS-MPP1MJJ | FDH 3000 Plug-and-Play Splitter Module, dual 1x16, SC/APC
Regular price
$1,890.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope FPS-MPP1MJJ | FDH 3000 Plug-and-Play Splitter Module, dua...
Regular price
$1,890.52
Unit price
Brand: CommScope
|
SKU:
10162351
Regular price
$1,890.52
Unit price
Shipping calculated at checkout.
Description
Description
FDH 3000 Plug-and-Play Splitter Module, dual 1x16, SC/APC
Specifications
Specifications
Product Classification
| Regional Availability | Latin America | North America |
|---|---|
| Portfolio | CommScope |
General Specifications
| Device Type | Plug-and-play module |
|---|---|
| Functionality | Splitting |
| Access | Front | Rear |
| Application | For use in FDH 3000 cabinets |
| Circuits, quantity | 2 |
| Distribution Type | 1 x 16 splitter |
Dimensions
| Height | 88.9 mm | 3.5 in |
|---|---|
| Width | 12.7 mm | 0.5 in |
| Depth | 139.7 mm | 5.5 in |
Optical Specifications
| Directivity, minimum | 60 dB |
|---|---|
| Polarization Dependent Loss, maximum | 0.3 dB |
| Uniformity, maximum | 1 dB |
| Wavelength Range | 1260–1635 nm |
| Insertion Loss, Splitter, maximum | 13.5 dB |
| Insertion Loss, Splitter, typical | 13.2 dB |
| Return Loss, Splitter, minimum | 55 dB |
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Flammability Rating | UL 94 V-0 |
| Qualification Standards | Telcordia GR-1209-CORE | Telcordia GR-1221-CORE | Telcordia GR-326-CORE |
Packaging and Weights
| Included | Reversible dust cap |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Bag | Carton |
Regulatory Compliance/Certifications
| ROHS | Compliant/Exempted |
|---|---|
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
