Brand: CommScope | SKU: 467405

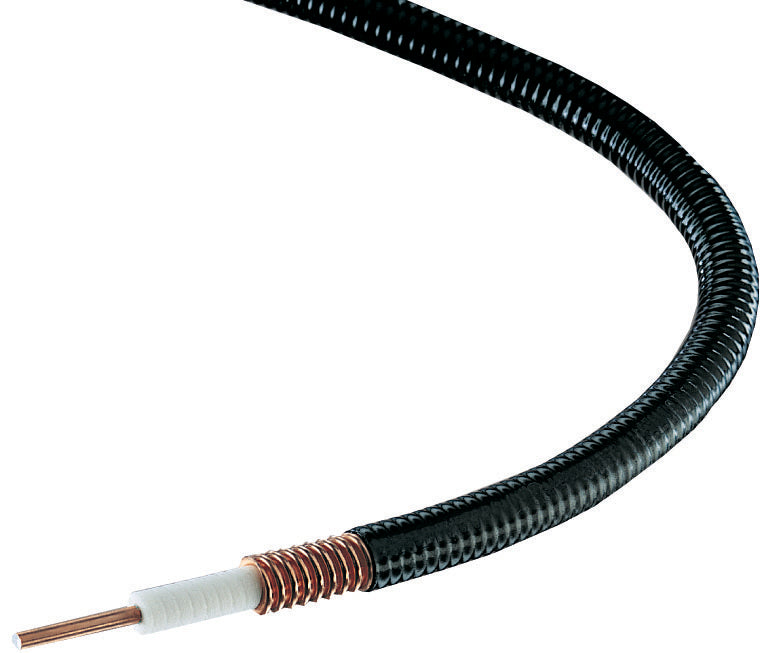

Commscope FSJ4P-50B-42 | FSJ4-50B, HELIAX Superflexible Foam Premium Coaxial Cable, corrugated copper, 1/2 in, black PE jacket

$3.06

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope FSJ4P-50B-42 | FSJ4-50B, HELIAX Superflexible Foam Premium Coaxial Cable, corrugated copper, 1/2 in, black PE jacket

Specifications

Product Classification

Product Type	Coaxial wireless cable
Product Brand	HELIAX / SureFlex
Product Series	FSJ4-50B
Ordering Note	CommScope standard product in Europe, the Middle East, and Africa

General Specifications

Flexibility	Superflexible
Jacket Color	Black

Dimensions

Diameter Over Dielectric	8.89 mm / 0.35 in
Diameter Over Jacket	13.462 mm / 0.53 in
Inner Conductor OD	3.556 mm / 0.14 in
Outer Conductor OD	12.192 mm / 0.48 in
Nominal Size	1/2 in

Electrical Specifications

Cable Impedance	50 ohm ±1 ohm
Capacitance	82.7 pF/m / 25.207 pF/ft
dc Resistance, Inner Conductor	2.69 ohms/km / 0.82 ohms/kft
dc Resistance, Outer Conductor	5.12 ohms/km / 1.561 ohms/kft
dc Test Voltage	2500 V
Inductance	0.207 µH/m / 0.063 µH/ft
Insulation Resistance	100000 MOhms-km
Jacket Spark Test Voltage (rms)	5000 V
Operating Frequency Band	1 – 10200 MHz
Peak Power	22.5 kW
Velocity	0.81

Material Specifications

Dielectric Material	Foam PE
Jacket Material	PE
Inner Conductor Material	Copper-clad aluminum wire
Outer Conductor Material	Corrugated copper

Mechanical Specifications

Minimum Bend Radius, multiple Bends	31.75 mm / 1.25 in
Minimum Bend Radius, Single Bend	31.75 mm / 1.25 in
Number of Bends, minimum	20
Number of Bends, typical	50
Tensile Strength	79 kg / 174.165 lb
Bending Moment	2.7 N-m / 23.897 in lb
Flat Plate Crush Strength	2 kg/mm / 111.995 lb/in

Environmental Specifications

Installation temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-70 °C to +85 °C (-94 °F to +185 °F)
Attenuation, Ambient Temperature	20 °C / 68 °F
Average Power, Ambient Temperature	40 °C / 104 °F
Average Power, Inner Conductor Temperature	100 °C / 212 °F

Packaging and Weights

Cable weight	0.21 kg/m / 0.141 lb/ft

Regulatory Compliance/Certifications

CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
