Brand: CommScope
|
SKU:
10041999

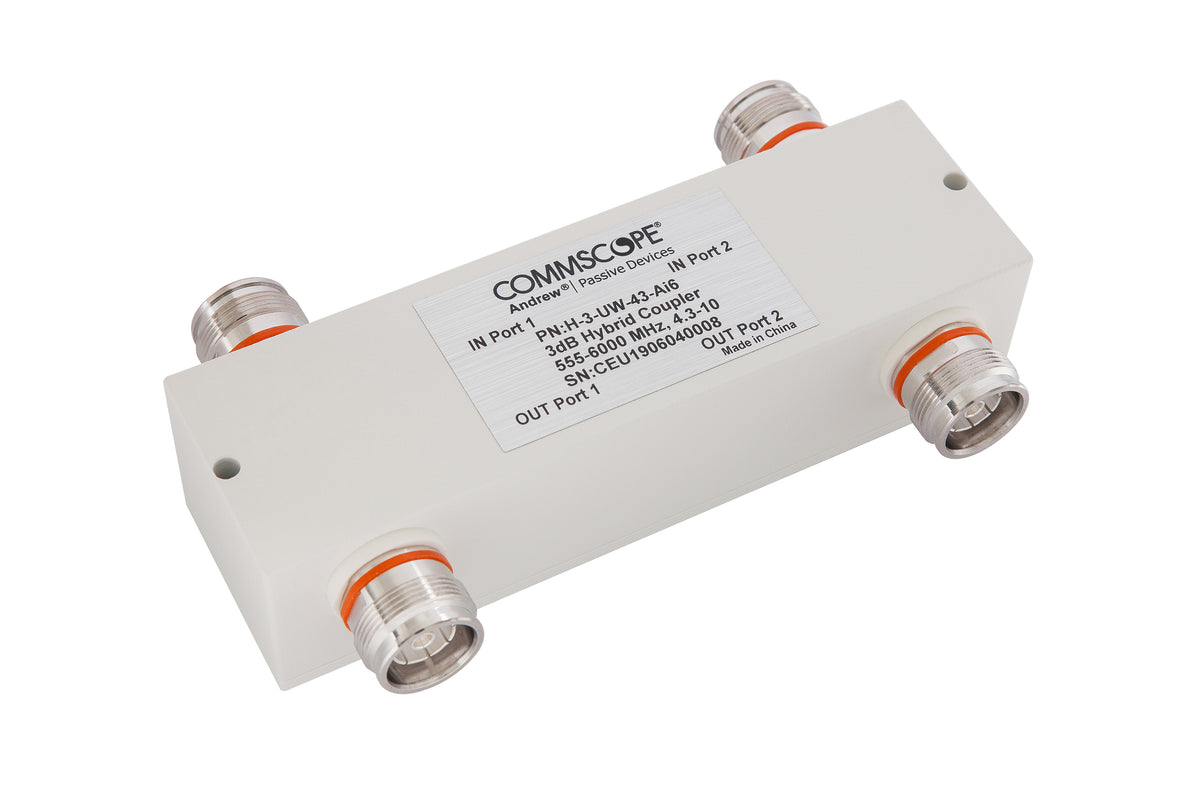

CommScope H-3-UW-43-AI6 | Low PIM Air Dielectric Hybrid Coupler, 555–6000 MHz
Regular price
$449.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope H-3-UW-43-AI6 | Low PIM Air Dielectric Hybrid Coupler, 55...
Regular price
$449.96
Unit price
Description
Description
CommScope H-3-UW-43-AI6 | Low PIM Air Dielectric Hybrid Coupler, 555–6000 MHz
Specifications
Specifications
CommScope - H-3-UW-43-AI6 - Product Categories
- Splitters, Combiners & Multiplexers
- In-building Wireless Passive Devices
- Couplers
CommScope - H-3-UW-43-AI6 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Product Type | Hybrid coupler |
CommScope - H-3-UW-43-AI6 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Low PIM Air Dielectric Hybrid Coupler, 555–6000 MHz |
| Model Number | H-3-UW-43-AI6 |
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
CommScope - H-3-UW-43-AI6 - Additional Information
| Dimensions | - |
|---|---|
| Height | 36 mm | 1.417 in |
| Width | 79 mm | 3.110 in |
| Length | 145 mm | 5.709 in |
| Electrical Specifications | - |
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±0.7dB @ 610-6000 MHz | ±1.1dB @ 555–610 MHz |
| Impedance | 50 ohm |
| Isolation Between Bands | 20 dB |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 500 W |
| VSWR | 1.25 |
| Mechanical Specifications | - |
| Coupling Nut Proof Torque | 7 N-m | 61.955 in lb |
| Environmental Specifications | - |
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
