Brand: CommScope
|
SKU:
10223165

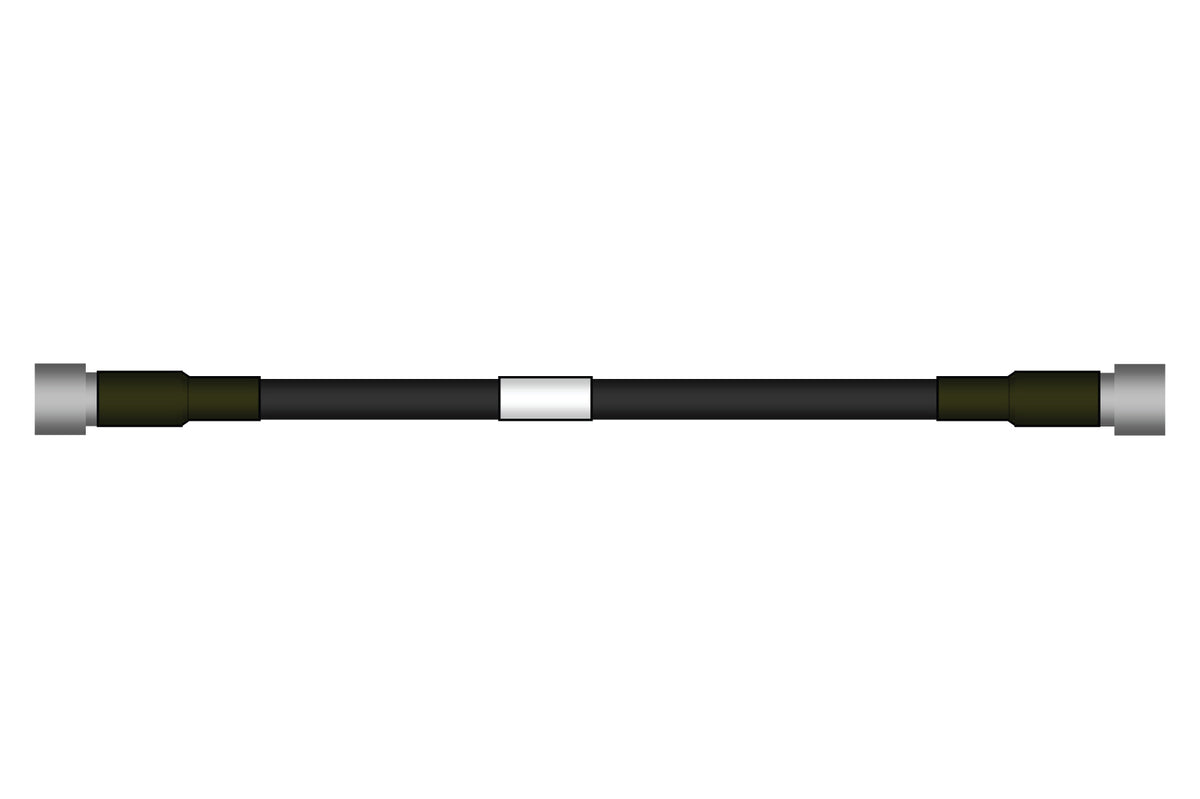

CommScope H4-HMHM-10-P | HL4-50 Jumper with interface types 4.3-10 male and 4 3-10 male, 10 ft
Regular price
$113.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope H4-HMHM-10-P | HL4-50 Jumper with interface types 4.3-10 ...
Regular price
$113.88
Unit price
Description
Description
CommScope H4-HMHM-10-P | HL4-50 Jumper with interface types 4.3-10 male and 4 3-10 male, 10 ft
Specifications
Specifications
CommScope - H4-HMHM-10-P - Product Categories
- Cable Assemblies
- Wireless Cable Assemblies
- Coaxial Cable Assemblies
CommScope - H4-HMHM-10-P - Product Classification
| Product Type | SureFlexPremium, static PIM |
|---|---|
| Product Brand | HELIAX |
| Product Series | HL4-50A |
CommScope - H4-HMHM-10-P - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | HL4-50 Jumper with interface types 4.3-10 male and 4 3-10 male, 10 ft |
| Model Number | H4-HMHM-10-P |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
CommScope - H4-HMHM-10-P - Additional Information
| Dimensions | - |
|---|---|
| Length | 3.048 m | 10 ft |
| Cable Length Unit | Feet |
| Nominal Size | 1/2 in |
| Electrical Specifications | - |
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 800–960 MHz |
| Environmental Specifications | - |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
