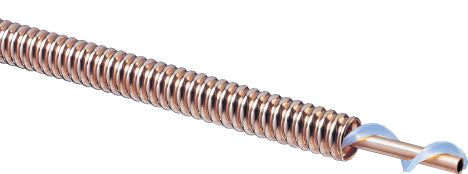

Commscope H5-50 | H5-50, HELIAX Standard Air Dielectric Coaxial Cable, corrugated copper, 7/8 in, un- jacketed
Regular price
$16.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope H5-50 | H5-50, HELIAX Standard Air Dielectric Coaxial Cab...
Regular price
$16.31
Unit price
Description
Description
Commscope H5-50 | H5-50, HELIAX Standard Air Dielectric Coaxial Cable, corrugated copper, 7/8 in, un- jacketed
Specifications
Specifications
Product Classification
| Product Type | Air coaxial cable |
|---|---|
| Product Brand | HELIAX |
General Specifications
| Flexibility | Standard |
|---|
Dimensions
| Inner Conductor OD | 9.144 mm / 0.36 in |
|---|---|
| Outer Conductor OD | 25.4 mm / 1 in |
| Nominal Size | 7/8 in |
| Cable Volume | 325.161 L/km / 3.5 ft³/kft |
Electrical Specifications
| Cable Impedance | 50 ohm ±0.5 ohm |
|---|---|
| Capacitance | 72.835 pF/m / 22.2 pF/ft |
| dc Resistance, Inner Conductor | 0.82 ohms/km / 0.25 ohms/kft |
| dc Resistance, Outer Conductor | 0.656 ohms/km / 0.2 ohms/kft |
| dc Test Voltage | 6000 V |
| Inductance | 1.87 µH/m / 0.57 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 5200 MHz |
| Peak Power | 90 kW |
| Power Attenuation | 2.78080010414123 |
| Velocity | 0.92 |
Material Specifications
| Dielectric Material | PE |
|---|---|
| Jacket Material | Unjacketed |
| Inner Conductor Material | Copper tube |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 254 mm / 10 in |
|---|---|
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 20 |
| Tensile Strength | 363 kg / 800.277 lb |
| Bending Moment | 33.895 N-m / 25 ft lb |
| Flat Plate Crush Strength | 4.465 kg/mm / 250 lb/in |
| Pressurization, maximum | 0.207 N/mm² / 30 psi |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
Packaging and Weights
| Cable weight | 0.804 kg/m / 0.54 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
