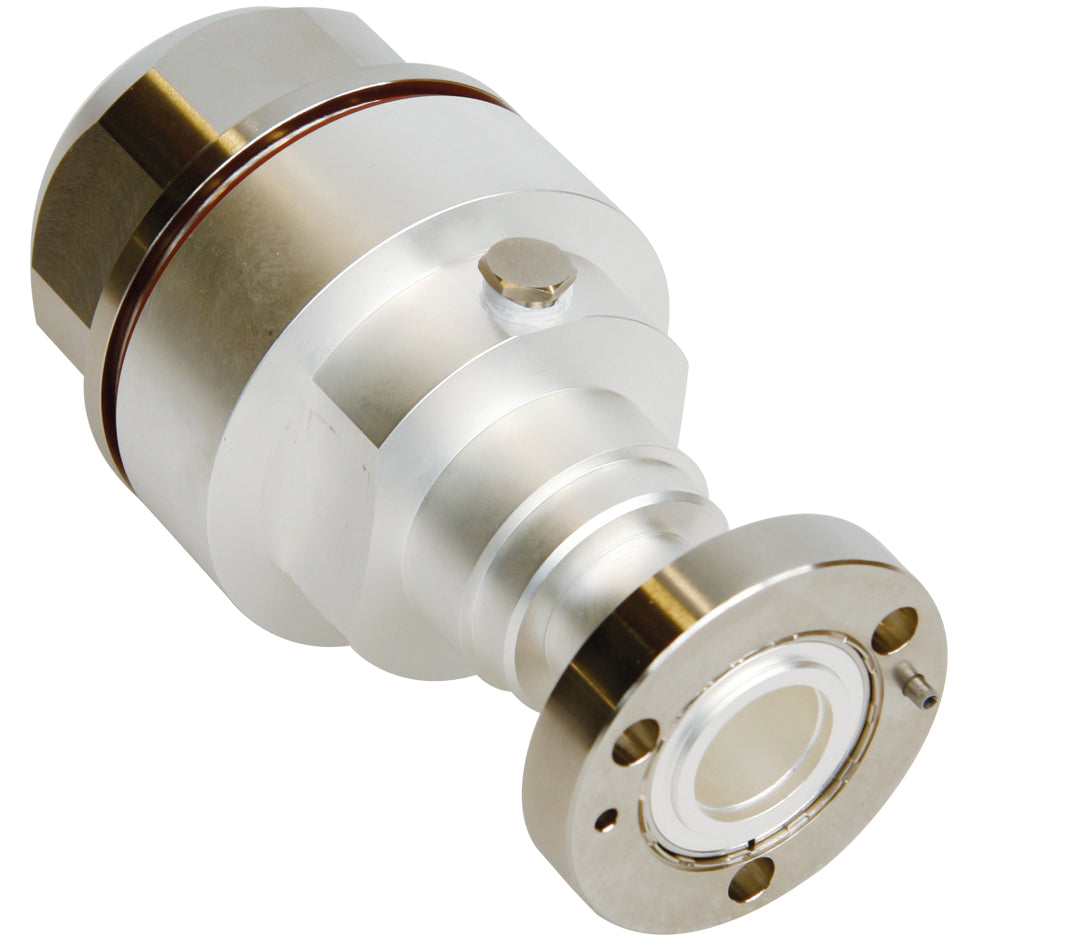

Commscope H7FB-014-S | 7/8 in EIA Female Flange with gas barrier for 1-5/8 in HJ7-50A air dielectric cable. Coupling Element, O-Ring, screw-set sold separately. Click-on: Related Products, Device connectors and Adapters
Regular price
$644.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope H7FB-014-S | 7/8 in EIA Female Flange with gas barrier fo...
Regular price
$644.82
Unit price
Description
Description
Commscope H7FB-014-S | 7/8 in EIA Female Flange with gas barrier for 1-5/8 in HJ7-50A air dielectric cable. Coupling Element, O-Ring, screw-set sold separately. Click-on: Related Products, Device connectors and Adapters
Specifications
Specifications
Product Classification
| Product Type | Air coaxial connector |
|---|---|
| Product Brand | HELIAX |
| Ordering Note | Gas pass version can be created by drilling out the PTFE dielectric |
General Specifications
| Body Style | Straight |
|---|---|
| Cable Family | HJ7-50A |
| Gas Barrier | Yes |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Silver |
| Interface | 7/8 in EIA Female Flange |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Tab-flare |
| Outer Contact Plating | Silver |
Dimensions
| Length | 130.048 mm / 5.12 in |
|---|---|
| Diameter | 71.882 mm / 2.83 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
|---|---|
| Average Power at Frequency | 3.5 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 6 kV |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Peak Power, maximum | 90 kW |
| RF Operating Voltage, maximum (vrms) | 2121 V |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.4 kg / 3.086 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
