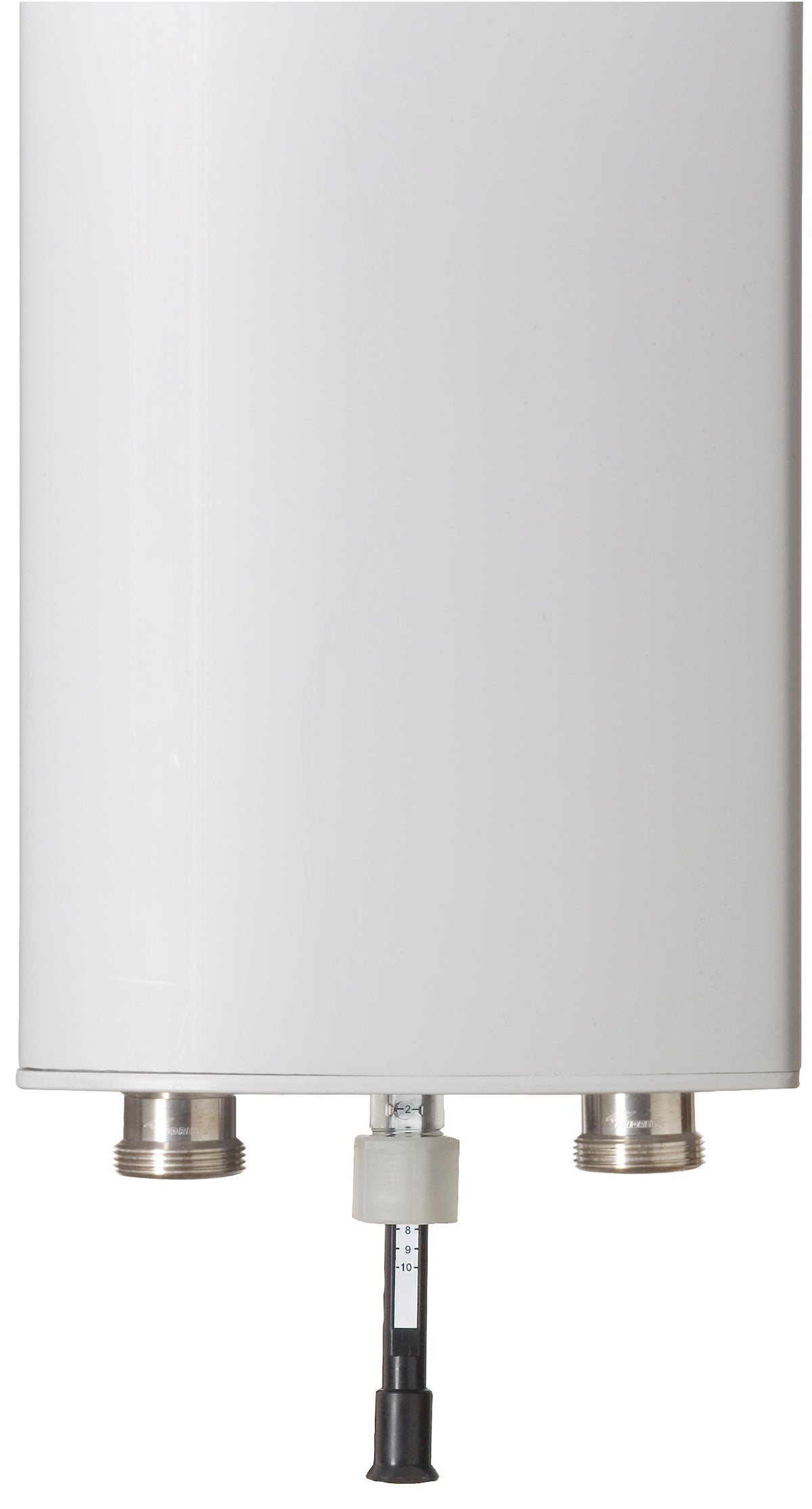

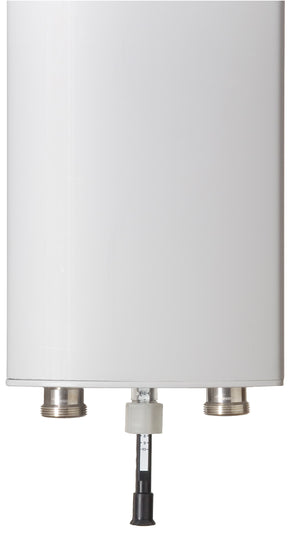

Commscope HBX-6513DS-VTM | 2-port sector antenna, 2x 1710–2180 MHz, 65° HPBW, RET compatible
Regular price
$645.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope HBX-6513DS-VTM | 2-port sector antenna, 2x 1710–2180 MHz,...
Regular price
$645.24
Unit price
Description
Description
Commscope HBX-6513DS-VTM | 2-port sector antenna, 2x 1710–2180 MHz, 65° HPBW, RET compatible
Features and Benefits
- Rugged, reliable design with excellent passive intermodulation suppression
Specifications
Specifications
General Specifications
| Antenna Type | Sector |
|---|---|
| Band | Single band |
| Color | Light gray |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 166 mm / 6.535 in |
|---|---|
| Depth | 83 mm / 3.268 in |
| Length | 695 mm / 27.362 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Mechanical Specifications
| Wind Loading at Velocity, frontal | 119.0 N @ 150 km/h / 27.2 lbf @ 150 km/h |
|---|---|
| Wind Loading at Velocity, lateral | 33.0 N @ 150 km/h / 7.4 lbf @ 150 km/h |
| Wind Loading at Velocity, rear | 147.0 N @ 150 km/h / 33.0 lbf @ 150 km/h |
| Wind Speed, maximum | 241 km/h / 149.75 mph |
Packaging and Weights
| Width, packed | 277 mm / 10.906 in |
|---|---|
| Depth, packed | 188 mm / 7.402 in |
| Length, packed | 1000 mm / 39.37 in |
| Net Weight, without mounting kit | 2.8 kg / 6.173 lb |
| Weight, gross | 8.8 kg / 19.401 lb |
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- HBX-6513DS-VTM Line Drawing
- Antennas with Factory Installed Actuators
- ATM200 Actuators
- Pre-Testing and Configuring of RET Antenna Systems Prior to Installation Overview
- Statement of Compliance RoHS/REACH
- Antenna Patterns (login required)
- HBX-6513DS-VTM Product specifications
- HBX-6513DS-VTM Product specifications (Comprehensive)
