Brand: CommScope
|
SKU:
10655567

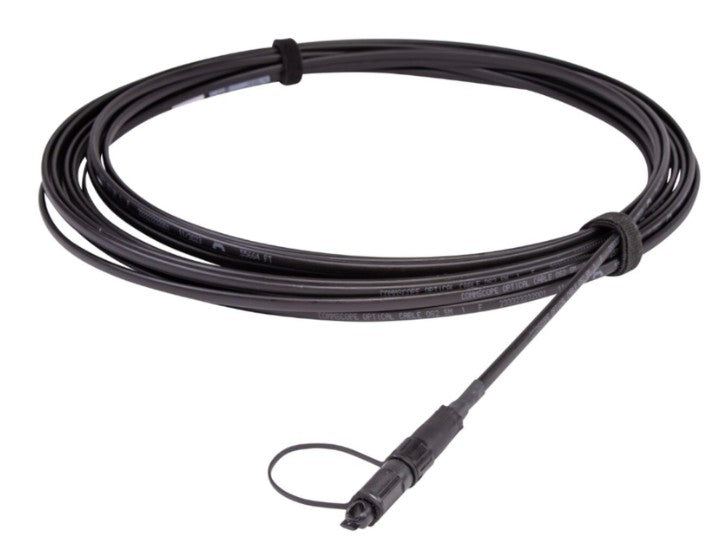

CommScope HCA-X01A-0100F | Fiber Optic Drop Cable Assembly, PRODIGY Connector Core with DLX Converter to Stub
Regular price
$59.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope HCA-X01A-0100F | Fiber Optic Drop Cable Assembly, PRODIGY...
Regular price
$59.45
Unit price
Description
Description
CommScope HCA-X01A-0100F | Fiber Optic Drop Cable Assembly, PRODIGY Connector Core with DLX Converter to Stub
CommScope - HCA-X01A-0100F - Features
- Cable assembly with the Prodigy small form hardened connector
- Compact and small footprint, space-saving design for high-density environments
- Compatible with multiple hardened connectors
- Product complies with the Build America, Buy America Act (BABAA) requirements of the Infrastructure Investment and Jobs Act of 2021 (Pub. L. 117- 58, §§ 70901-70953), or is the subject of a waiver approved by the Secretary of Commerce or designee. Compliance requirements and waiver applicability vary based on government funding program. Check the laws and regulations for your specific program.
Specifications
Specifications
CommScope - HCA-X01A-0100F - Specifications
| Regional Availability | Latin America | North America |
|---|---|
| Product Type | Fiber drop cable assembly |
| Product Brand | PRODIGY™ |
| Product Series | HCA |
| Government Requirements | Build America Buy America (BABA) compliant* |
| Cable Type | Dielectric - Flat |
| Connector A, quantity | 1 |
| Color, boot A | Black |
| Color, connector A | Black |
| Interface, Connector A | Prodigy® with DLX converter installed |
| Interface, Connector B | Unterminated |
| Jacket Color | Black |
| Cable Outer Diameter | 4.5 x 8.0 mm (0.18 x 0.31 in) |
| Minimum Bend Radius, loaded | 90 mm | 3.543 in |
| Minimum Bend Radius, unloaded | 81 mm | 3.189 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1334 N | 299.895 lbf |
| Cable Crush Resistance, maximum | 10 N/mm | 57.101 lbf/in |
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Outdoor |
| Jacket UV Resistance | UV stabilized |
