Brand: CommScope
|
SKU:
10584215

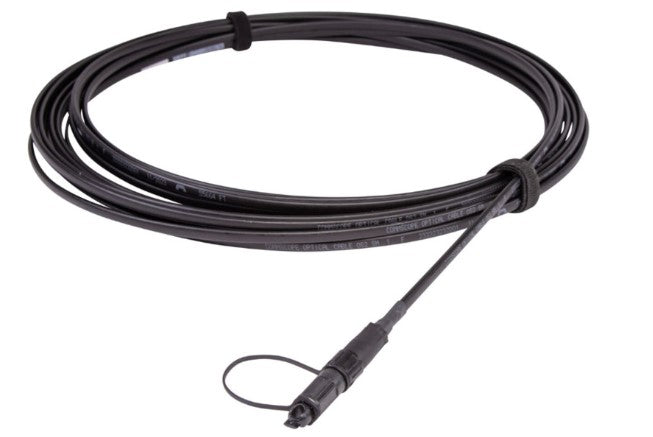

CommScope HCA-X01A-0750FL | Fiber Optic Drop Cable Assembly PRODIGY Connector Core with DLX Converter to Stub
Regular price
$245.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope HCA-X01A-0750FL | Fiber Optic Drop Cable Assembly PRODIGY...
Regular price
$245.39
Unit price
Description
Description
CommScope HCA-X01A-0750FL | Fiber Optic Drop Cable Assembly PRODIGY Connector Core with DLX Converter to Stub
CommScope - HCA-X01A-0750FL - Features

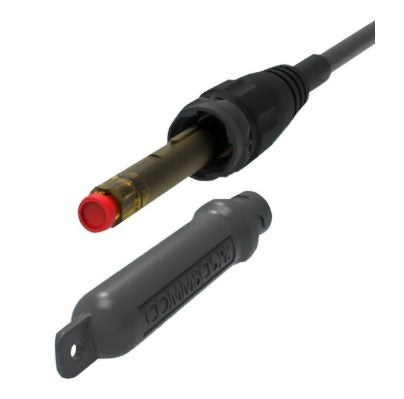

- Cable assembly with the Prodigy™ small form hardened connector
- Compact and small footprint, space-saving design for high-density environments
- Compatible with multiple hardened connectors
Specifications
Specifications
CommScope - HCA-X01A-0750FL - Specifications
| Product Type | Fiber drop cable assembly |
|---|---|
| Cable Type | Dielectric - Flat |
| Connector A, quantity | 1 |
| Color, boot A | Black |
| Color, connector A | Black |
| Interface, Connector A | Prodigy® with DLX converter installed |
| Interface, Connector B | Unterminated |
| Jacket Color | Black |
| Jacket Color | Black |
| Cable Assembly Length Range (ft) | 1 – 2000 |
| Cable Outer Diameter | 4.5 x 8.0 mm (0.18 x 0.31 in) |
| Minimum Bend Radius, loaded | 90 mm | 3.543 in |
| Minimum Bend Radius, unloaded | 81 mm | 3.189 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1334 N | 299.895 lbf |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Jacket UV Resistance | UV stabilized |
| Cable weight | 39 kg/km | 26.207 lb/kft |
