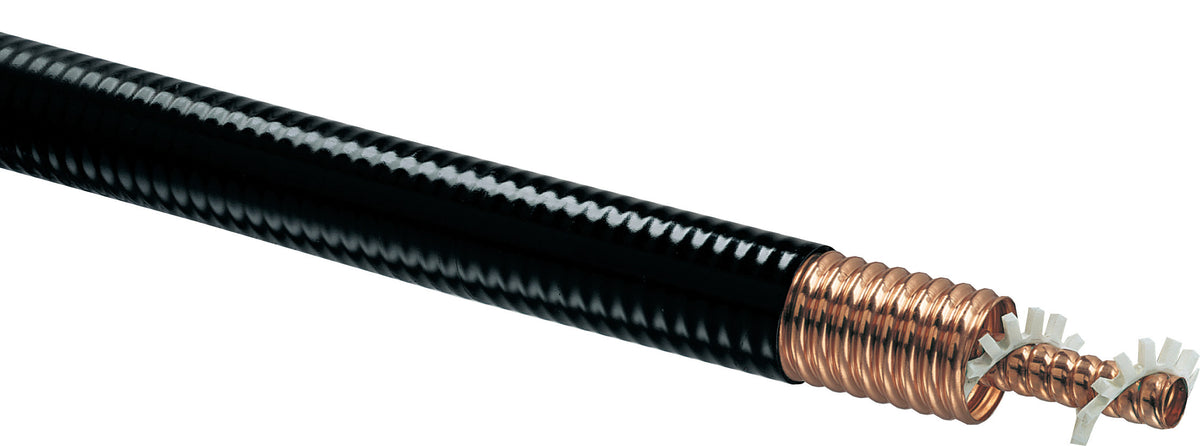

Commscope HJ8-50B | HJ8-50B, HELIAX Standard Air Dielectric Coaxial Cable, corrugated copper, 3 in, black PE jacket
Regular price
$54.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope HJ8-50B | HJ8-50B, HELIAX Standard Air Dielectric Coaxial...
Regular price
$54.24
Unit price
Description
Description
Commscope HJ8-50B | HJ8-50B, HELIAX Standard Air Dielectric Coaxial Cable, corrugated copper, 3 in, black PE jacket
Specifications
Specifications
Product Classification
| Product Type | Air coaxial cable |
|---|---|
| Product Brand | HELIAX |
| Product Series | HJ8-50B |
General Specifications
| Flexibility | Standard |
|---|---|
| Jacket Color | Black |
Dimensions
| Diameter Over Jacket | 76.454 mm / 3.01 in |
|---|---|
| Inner Conductor OD | 28.956 mm / 1.14 in |
| Outer Conductor OD | 72.39 mm / 2.85 in |
| Nominal Size | 3 in |
| Cable Volume | 3409.540 L/km / 36.7 ft³/kft |
Electrical Specifications
| Cable Impedance | 50 ohm ±0.5 ohm |
|---|---|
| Capacitance | 71.194 pF/m / 21.7 pF/ft |
| dc Resistance, Inner Conductor | 0.492 ohms/km / 0.15 ohms/kft |
| dc Resistance, Outer Conductor | 0.23 ohms/km / 0.07 ohms/kft |
| dc Test Voltage | 16000 V |
| Inductance | 1.87 µH/m / 0.57 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 10000 V |
| Operating Frequency Band | 1 – 1640 MHz |
| Peak Power | 640 kW |
| Power Attenuation | 5.99730014801025 |
| Velocity | 0.93 |
Material Specifications
| Dielectric Material | PP |
|---|---|
| Jacket Material | PE |
| Inner Conductor Material | Copper tube |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 762 mm / 30 in |
|---|---|
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 25 |
| Tensile Strength | 340 kg / 749.571 lb |
| Bending Moment | 40.675 N-m / 30 ft lb |
| Flat Plate Crush Strength | 3.125 kg/mm / 175 lb/in |
| Pressurization, maximum | 0.207 N/mm² / 30 psi |
Environmental Specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 121.111 °C / 250 °F |
Packaging and Weights
| Cable weight | 2.649 kg/m / 1.78 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
