Brand: CommScope
|
SKU:
10093870

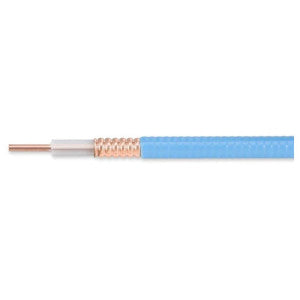

Commscope HL4RPV-50B | HL4-50A, HELIAX Plenum Rated Air Dielectric Coaxial Cable, corrugated copper, 1/2 in, blue PVC jacket
Regular price
$7.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope HL4RPV-50B | HL4-50A, HELIAX Plenum Rated Air Dielectric ...
Regular price
$7.09
Unit price
Description
Description
Commscope HL4RPV-50B | HL4-50A, HELIAX Plenum Rated Air Dielectric Coaxial Cable, corrugated copper, 1/2 in, blue PVC jacket
Specifications
Specifications
Product Classification
| Product Type | Air coaxial cable |
|---|---|
| Product Brand | HELIAX |
| Product Series | HL4-50A |
General Specifications
| Flexibility | Standard |
|---|---|
| Jacket Color | Blue |
Dimensions
| Diameter Over Jacket | 15.367 mm / 0.605 in |
|---|---|
| Inner Conductor OD | 4.801 mm / 0.189 in |
| Outer Conductor OD | 13.843 mm / 0.545 in |
| Nominal Size | 1/2 in |
Electrical Specifications
| Cable Impedance | 50 ohm ±2 ohm |
|---|---|
| Capacitance | 75.459 pF/m / 23 pF/ft |
| dc Resistance, Inner Conductor | 1.476 ohms/km / 0.45 ohms/kft |
| dc Resistance, Outer Conductor | 1.903 ohms/km / 0.58 ohms/kft |
| dc Test Voltage | 4000 V |
| Inductance | 0.19 µH/m / 0.058 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 5000 V |
| Operating Frequency Band | 1 – 8800 MHz |
| Peak Power | 40 kW |
| Power Attenuation | 2.32500004768371 |
| Pulse Reflection | 0.005 |
| Velocity | 0.88 |
Material Specifications
| Dielectric Material | PE spline |
|---|---|
| Jacket Material | PVC |
| Inner Conductor Material | Copper-clad aluminum wire |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications
| Minimum Bend Radius, multiple Bends | 127 mm / 5 in |
|---|---|
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 25 |
| Tensile Strength | 113 kg / 249.122 lb |
| Bending Moment | 5.423 N-m / 4 ft lb |
| Flat Plate Crush Strength | 1.429 kg/mm / 80 lb/in |
Environmental Specifications
| Installation temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +80 °C (-4 °F to +176 °F) |
| Storage Temperature | -20 °C to +85 °C (-4 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Fire Retardancy Test Method | NFPA 262/CATVP/CMP |
Packaging and Weights
| Cable weight | 0.253 kg/m / 0.17 lb/ft |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| UL/ETL Certification | CATVP |
