Brand: CommScope
|
SKU:
10560888

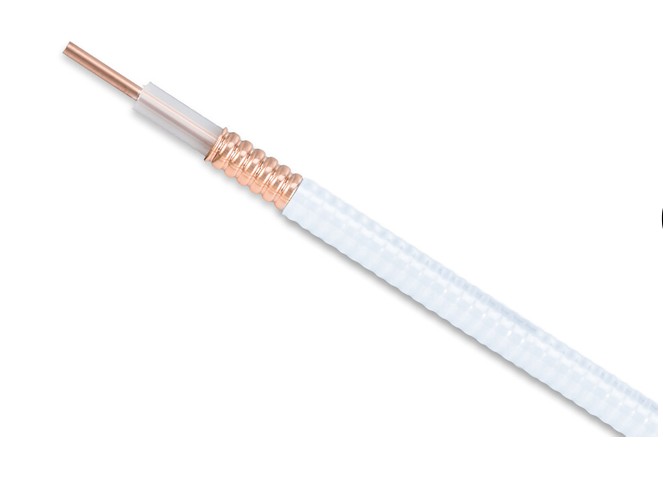

CommScope HL4RPV50WCBAND | Plenum Rated Air Dielectric Coaxial Cable, Corrugated Copper, 1/2 in, off White PVC jacket
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope HL4RPV50WCBAND | Plenum Rated Air Dielectric Coaxial Cabl...
Regular price
$5.39
Unit price
Description
Description
CommScope HL4RPV50WCBAND | Plenum Rated Air Dielectric Coaxial Cable, Corrugated Copper, 1/2 in, off White PVC jacket
Specifications
Specifications
CommScope - HL4RPV50WCBAND - Specifications
| Coax Construction | Coaxial |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Type | Stranded Conductor |
| Dielectric Material | Air |
| Flooded | No Not Flooded Over Braid |
| Fire Rating | Plenum |
| Impedance | 32 Ohm Nominal Impedance |
| Jacket Material | No Jacket |
| Outdoor | No Not Outdoor Grade Material |
| Screen/shield Type | Unshielded |
| UNSPSC Code | 26121606 |
| Flexibility | Standard |
| Standard | Off-white |
| Diameter Over Jacket | 15.367 mm | |
| Inner Conductor OD | 4.801 mm |
| Cable Impedance | 50 ohm ±2 ohm |
| Capacitance | 75.459 pF/m | 23 pF/ft |
| dc Test Voltage | 4000 V |
| Inductance | 0.19 µH/m | 0.058 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Peak Power | 40 kW |
