Brand: CommScope
|
SKU:
959367

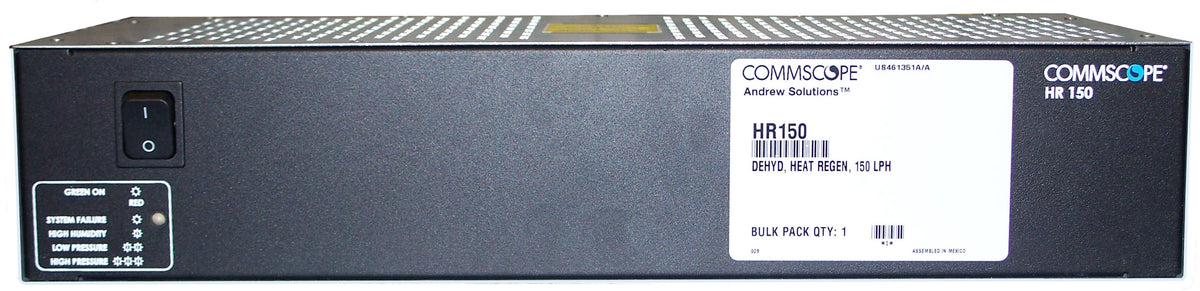

Commscope HR150 | Heat Regenerated Dehydrator, 19 in rack mountable, 3.0 kPa (0.44 psig), with summary alarms, 48 Vdc (ac operation possible using optional power supply purchased separately)
Regular price
$2,210.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope HR150 | Heat Regenerated Dehydrator, 19 in rack mountable...
Regular price
$2,210.11
Unit price
Description
Description
Commscope HR150 | Heat Regenerated Dehydrator, 19 in rack mountable, 3.0 kPa (0.44 psig), with summary alarms, 48 Vdc (ac operation possible using optional power supply purchased separately)
Specifications
Specifications
Outline Drawing–Front
| Click on image to enlarge. |
|---|
Outline Drawing–Side
| Click on image to enlarge. |
|---|
Outline Drawing–Back
| Click on image to enlarge. |
|---|
Outline Drawing–Top
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Dehydrator |
|---|
General Specifications
| Alarm Type | Summary |
|---|---|
| Cut In/Out Pressure Type | Continuous (default set to 3.0 kPa / 0.4 psig) |
| Dehydrator Type | Automatically regenerating Desiccant |
| Dew Point | Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F) |
| Flow Rate, nominal | 2.5 SLPM |
| High-Pressure Alarm | Factory set (default set to 4.5 kPa / 0.7 psig) |
| Low-Pressure Alarm | Factory set (default set to 1.5 kPa / 0.22 psig) |
| Mounting | Rack |
| Port Count | 4 |
| Port Type | 3/8 in PE tube |
| Power Cord | dc power cord |
| Rack Type | EIA 19 in / ETSI N3 (optional) |
| Rack Units | 2 |
| Regulated Output Pressure Type | factory set, continuous |
Dimensions
| Product Height | 91.8 mm / 3.614 in |
|---|---|
| Product Width | 439.4 mm / 17.299 in |
| Product Depth | 190.5 mm / 7.5 in |
| Volume Capacity, maximum | 0.6 m³ / 21.189 ft³ |
Electrical Specifications
| Alarm Contact Rating | Handles at least 0.5 A (ac or dc) |
|---|---|
| Power Consumption, maximum | 45 W |
| Voltage | 48–60 Vdc ±10% |
| Voltage Type | dc |
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|
Packaging and Weights
| Weight, gross | 9.6 kg / 21.164 lb |
|---|---|
| Weight, net | 4.8 kg / 10.582 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
